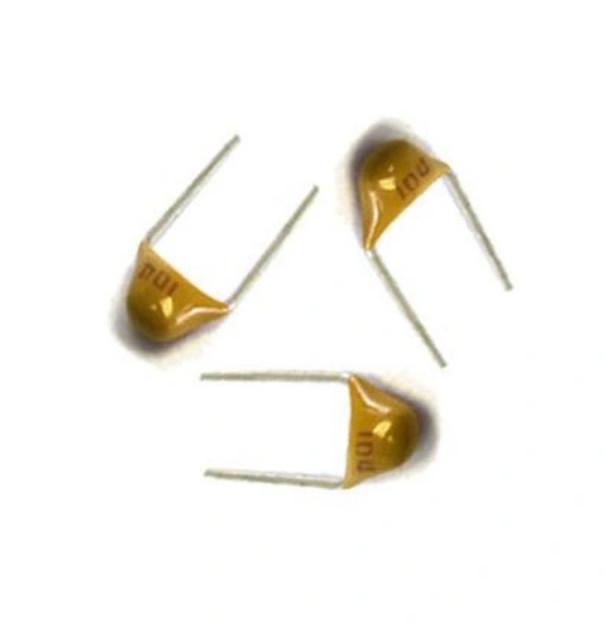

104 100nF MLCC Monolithic Ceramic Capacitor 50V Pitch 2.54mm +/-20%
104 100nF 50V Pitch 2.54mm +/-20% MLCC Monolithic Ceramic Capacitor
Feature
- Miniature size, wide capacitance, tape and reel packing available for auto-placement.
- Coating with epoxy resin, creates the excellent humidity resistance and prevents body from damage during soldering and washing.
- Industry standard size and various lead spacing available
General Specification
| Product Name | Radil Multilayer Ceramic Capacitor |
| Part Number | TMCC03-104K50VP2.54B |
| Temperature Characteristic | X7R ±15% -55～+125℃ |
| Capacitance | 0.1uF(104) |
| Rated Voltage | 50V |
| Lead Space | 2.54mm |
| Package | 1000pcs/ bag |
Eletrical Testing Parameters
| Item | Capacitance | DF | IR | Breakdown Voltage | Result |
| TMCC03- 104K50VP5A0603X7R | 90～110nF | ≤3.5% | ≥1×10 9Ω | 50V×2.5times | OK |
Size Code and Voltage VS Capacitance
| Size Code | Shape | Dimensions(Unit:mm) | Voltage | ||||
| F±0.5 | L±1 | H max | W max | Tmax | |||
| 0603 |  |
5.08 | 7～8mm | 5.0 | 5.5 | 4.0 | 50V |
Package: Bulk or Ammo Packing
Applications
Multilayer ceramic capacitors are widely used in electronic precision instruments. Various small electronic devices are used for resonance, coupling, filtering, and bypassing.
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor
And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
More details, kindly contact us freely!
