High Power Ribbon Ceramic Tube Resistor Wirewound Green 0.1~2KΩ 50W
High Power Ribbon Type Green Ceramic Tube Wirewound Resistor 0.1~2KΩ 50W 100W 500W 2000W
Features:
- High load, heat-sink performance
- Non-flame
- Stable performance of high voltage, pulsing load
-
Lead free, RoHS compliant, IP51 protection
Application: Power supply system, Meter/Instruments system, Industrial,automation system
Standard electrical specifications:
| Rated Power At 70℃ | Rsistance(Ω) | Max. Rating Voltage(UR) | Max. Overload Voltage(UL) |
Insulation Voltage(UN) |
T.C.R. PPM/℃ |
Operating Temperature |
|||
| P<50W | 0.1~1K | 350V | 500V | 1.5KV | ±100 ±250 ±500 |
-55℃~+275℃ | |||
| 50W~500W | 0.1~2K | 500V | 650V | 2KV | |||||
| P>500W | 0.1~5K | 650V | 1KV | 3KV | |||||

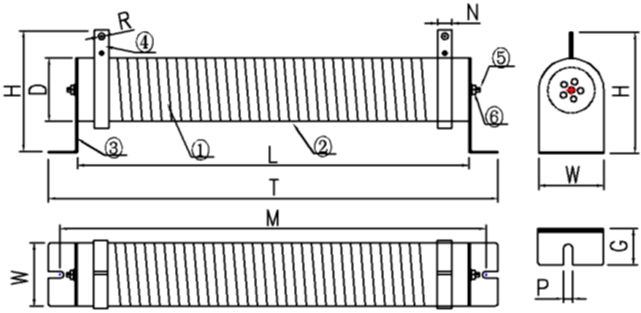

Dimensions
| Rating Power | Dimensions | ||||||||
| L±3.0 | W±2.0 | H±3.0 | M±3.0 | T±3.0 | P±0.5 | R±0.5 | N±0.5 | ||
| 20W | 50.0 | 16.0 | 50 | 70.00 | 95.0 | 5.5 | 3.0 | 6.0 | |
| 50W | 90.0 | 28.0 | 65 | 120.00 | 145.0 | 6.0 | 4.5 | 8.0 | |
| 100W | 167.0 | 28.0 | 65 | 198.00 | 224.0 | 6.0 | 4.5 | 8.0 | |
| 200W | 267.0 | 28.0 | 65 | 298.00 | 325.0 | 6.0 | 4.5 | 8.0 | |
| 300W | 267.0 | 40.0 | 88.0 | 301.00 | 342.0 | 5.0 | 6.0 | 10.0 | |
| 500W | 300.0 | 50.0 | 98.0 | 318.00 | 347.0 | 8.5 | 6.5 | 10.0 | |
| 1000W | 300.0 | 70.0 | 135.0 | 328.00 | 360.0 | 8.5 | 6.5 | 14.0 | |
| 1500W | 360.0 | 70.0 | 135.0 | 388.0 | 420.0 | 8.5 | 6.5 | 14.0 | |
| 2000W | 430.0 | 70.0 | 135.0 | 458.0 | 490.0 | 8.5 | 6.5 | 14.0 | |
| 3000W | 430.0 | 80.0 | 146.0 | 455.0 | 490.0 | 8.5 | 8.0 | 14.0 | |
| 5000W | 540.0 | 100.0 | 156.0 | 583.0 | 620.0 | 8.5 | 8.0 | 14.0 | |
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor
And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
