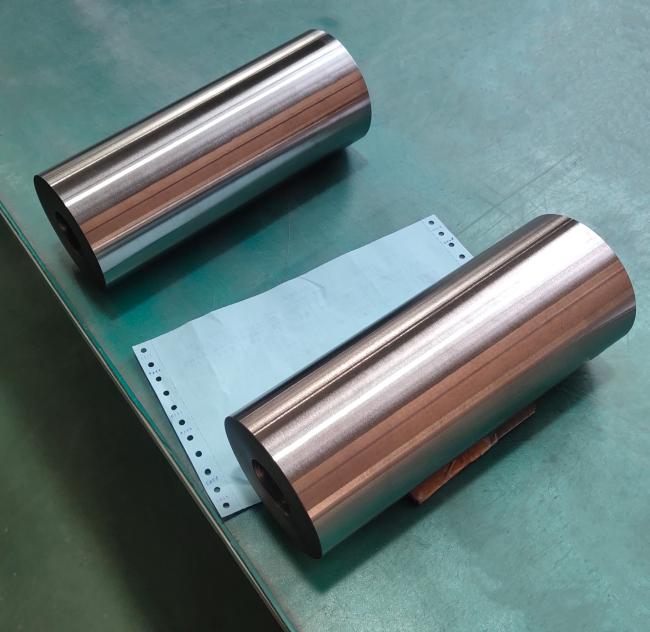

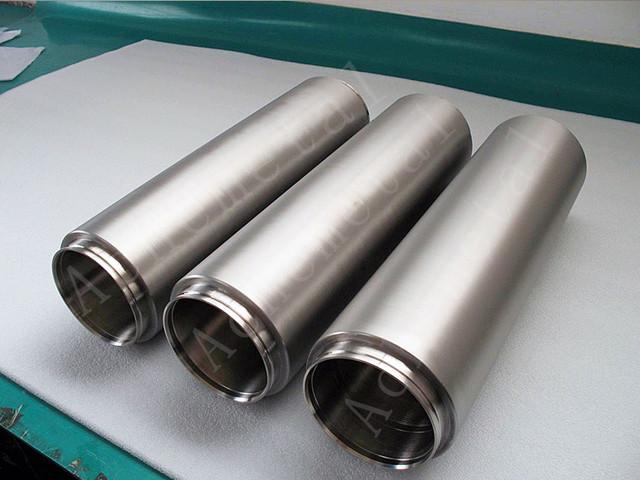

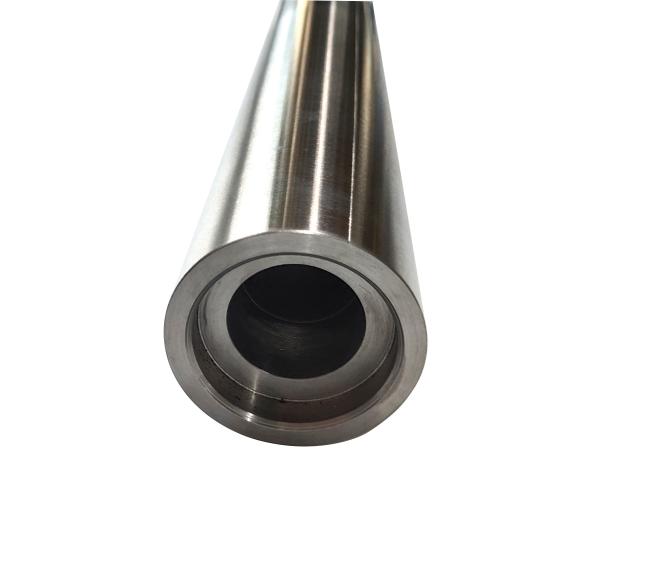

99.95% Pure Moly Tube Molybdenum Products Pipe Polished
Product description:
Achemetal Tungsten & Molybdenum Co., Ltd. can make products in various shapes such as square, round, tubular, dishing, annular and so on by machining and sheet metal machining of tungsten-molybdenum plates and bars.
Molybdenum tube are usually formed by machining the forged molybdenum bars. Achemetal can also manufacture molybdenum tube formed by rolling molybdenum sheets into tube and riveting or welding the tube, as well as molybdenum tube targets (molybdenum rotating targets) forged and reshaped after sintering.
Features:
Molybdenum tube produced by Achemetal are formed by machining blanks manufactured by our factory, which can ensure high-temperature resistance and mechanical strength of materials. Achemetal has in-depth understanding on the processing of tungsten-molybdenum materials and is guaranteed by exquisite CNC equipment, so the molybdenum tube produced by Achemetal can meet the requirements of customers on the tolerance of concentricity and equal size, and molybdenum tube with larger differences of diameter-height ratio can be manufactured.
Product specifications
Molybdenum Tube dimensions
| Outer Diameter(mm) | Internal Diameter(mm) | Length(mm) |
| 7 | 4 | 100 |
| 9 | 5 | 500 |
| 12 | 8 | 1000 |
| 50 | 40 | 800 |
| 145 | 125 | 3000 |
Impurities Content (wt%)
| Purity [%] | Mo | 99.95 |
|
Metallic Impurities [μg/g] |
Fe | 0.005 |
| Ni | 0.002 | |
| Al | 0.002 | |
| Si | 0.003 | |
| Ca | 0.002 | |
| Mg | 0.001 | |
|
Non-Metallic Impurities [μg/g] |
O | 0.003 |
| N | 0.001 | |
| C | 0.005 | |
| P | 0.001 | |
| Guaranteed Density [g/cm3] | 10.2 | |
| Grain Size [μm] | 100 | |

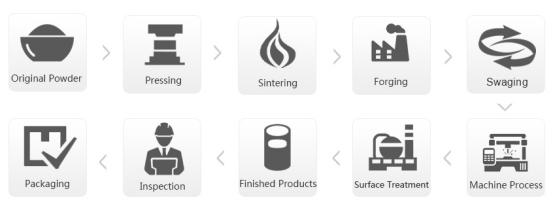

Technological process:
Application:
Mechanical parts used at high temperature and under vacuum;
Molybdenum tube for LED lamps;
Air guide pipes or support pillars in high-temperature vacuum furnaces, as well as nozzles;
Thermocouple protection sleeves;
Tungsten-molybdenum and alloy rotating targets (tubular);
Crucibles for single crystal furnaces
Payment methods
T/T advance, L/C at sight, or Western Union.
Packing&shipping
1) Packing: from the inside to outer packaging, is foam sponge, carton, wooden case.
2) Transport modes: Sea or Air transportation, DHL express or FedEx.
