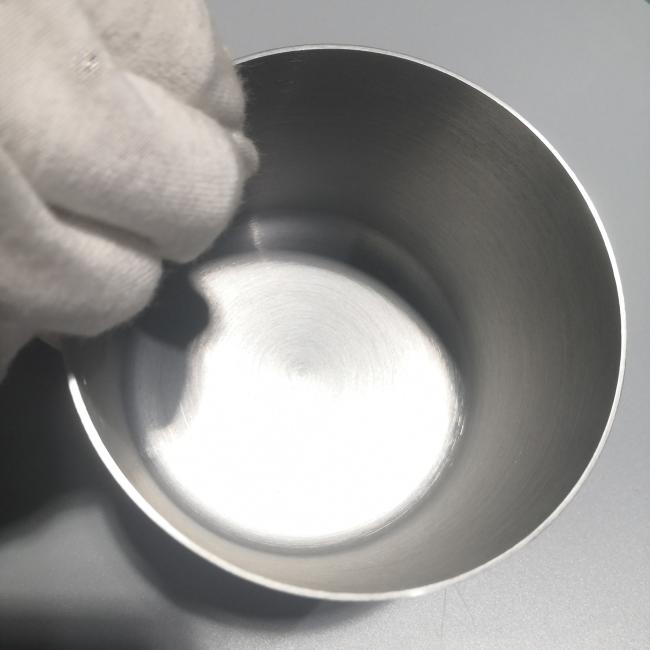

Thin Wall Vacuum Furnace Parts Molybdenum Crucible 15~80mm Dia Polishing Surface
Thin Wall And Low Cost Molybdenum Spinning Crucible For Vacuum Furnace Parts
Description
Features:
Crucibles produced by Achemetal Tungsten & Molybdenum Co., Ltd. include small tungsten crucibles and molybdenum crucibles by forging,plate spinning tungsten and molybdenum crucibles,
vacuum welding tungsten crucibles and molybdenum crucibles, large sintering tungsten crucibles and molybdenum crucibles as well as sintering tungsten-molybdenum alloy crucibles.
Bar turned crucibles are formed by turning high-quality bars of our company, and feature high density, no crack and sand hole inside, bright surfaces, uniform color and luster as well as accurate dimensions.

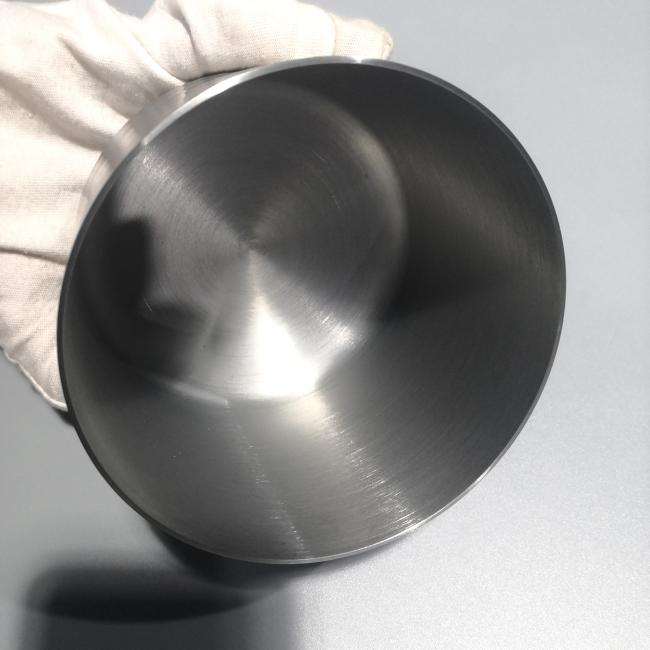

Spinned crucibles are made of high-quality plates through exclusive spinning crucible equipment of our company. The spinning crucibles of our company feature accurate appearance,
uniform thickness transition, smooth surface, high purity, strong creep resistance, etc.
Welded crucibles are formed by welding high-quality tungsten plates and molybdenum plates through sheet metal working and vacuum welding technologies.
The welded crucibles of our company feature good roundness, smooth welding seams, good firmness, no air leakage, etc.
Sintered crucibles are made of high-quality tungsten powder and molybdenum powder through strict screening, mixing, blank setting, pressing, powder turning and other processes,
with scientific control over sintering temperature gradient and long insulation time. In cooperation with a hot isostatic pressing process, the crucibles can achieve the features of high density, fine crystal grains and good molding.
| Fe | Ni | C | Al | O | N |
| 0.004 | 0.002 | 0.0028 | 0.0005 | 0.005 | 0.002 |
| Si | Ca | Mg | Cd | Sb | Sn |
| 0.0013 | < 0.001 | < 0.0005 | < 0.001 | < 0.0005 | < 0.0005 |
| P | Cu | Pb | Bi | Mo | |
| < 0.001 | < 0.0005 | < 0.0005 | < 0.0005 | >99.95% |
Typical specifications and dimensions of crucibles
| Category | Diameter(mm) | Height(mm) | wall Thickness(mm) |
| Bar Turned Crucibles | 15~80 | 15~150 | 2~10 |
| Rotary Crucibles | 50~500 | 15~500 | 1~4 |
| Welded Crucibles | 50~500 | 15~500 | 1.5~5 |
| Sintered Crucibles | 80~1000 | 50~1000 | 5 or more |
Molybdenum ASTM B387
| TABLE1 Chemical Requirements | ||||||
| Element | Composition,% | |||||
| Material Number | ||||||
| 360 | 361 | 363 | 364 | 365 | 366 | |
| C | 0.030max | 0.010max | 0.010-0.030 | 0.010-0.040 | 0.010max | 0.030max |
| O,MAXA | 0.0015 | 0.0070 | 0.0030 | 0.030 | 0.0015 | 0.0025 |
| N,MAXA | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 |
| Fe,MAX | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 |
| Ni,MAX | 0.002 | 0.005 | 0.002 | 0.005 | 0.002 | 0.002 |
| Si,MAX | 0.010 | 0.010 | 0.010 | 0.005 | 0.010 | 0.010 |
| Ti | ... | ... | 0.40-0.55 | 0.40-0.55 | ... | ... |
| W | ... | ... | ... | ... | ... | 27-33 |
| Zr | ... | ... | 0.06-0.12 | 0.06-0.12 | ... | ... |
| Mo | balance | balance | balance | balance | balance | balance |
A Pending approved methods of analysis,deviations these limits alone sahll not be cause for rejection.
| TABLE2 Permissible Variations in Check Analysis | |||
| Material NO. | Check Analysis Limits,max or range,% | Permissible Variations in Check Analysis,% | |
| C |
360, 363, 364, 366, 361, 365
|
0.010–0.040
0.010
|
±0.005
±0.002
|
| OA |
361
360, 363, 365, 366
364
|
0.0070
0.0030
0.030
|
+10 % relative
+10 % relative
+10 % relative
|
| NA |
361, 364, 365
360, 363, 366
|
0.0020
0.0010
|
+0.0005
+0.0005
|
| Fe |
360, 361, 363, 364, 365, 366
|
0.010
|
+0.001
|
| Ni |
360, 361, 363, 364, 365, 366
|
0.005
|
+0.0005
|
| Si |
360, 361, 363, 364, 365, 366
|
0.010 |
+0.002
|
| Ti |
363, 364
|
0.40–0.55
|
± 0.05 |
| W | 366 |
27.0–33.0
|
±1.0 |
| Zr | 363,364 |
0.06–0.12
|
±0.02 |
Process flow
Crucibles of our company are mainly applied to:
- Vacuum coating industry
- Rear earth smelting industry
- Sapphire crystal furnace industry
- Magnetic material industry
Specifications
Conventional density: 9.8g/cm³~10.0 g/cm³;
Special process density: more than 10.1g/cm³;
