1000mm-3000mm Length Molybdenum Sheet ASTM B387 Molybdenum Plate
99.95% high purity molybdenum plate factory price molybdenum plate
Product description

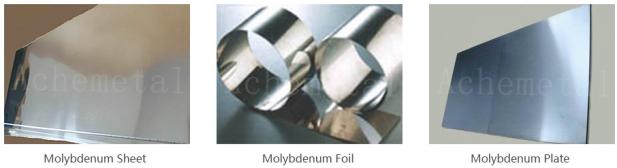

Molybdenum plates are formed by rolling the pressed and sintered molybdenum plates. Usually, 2-30mm-thick molybdenum is called molybdenum plate; 0.2-2mm-thick molybdenum is called molybdenum sheet; 0.2mm-thick molybdenum is called molybdenum foil. Molybdenum plates with different thicknesses need to be manufactured by rolling machines with different models.
The thinner molybdenum sheets and molybdenum foils have the better crimp property. When manufactured by a continuous rolling machine with tensile force and supplied in coils, molybdenum sheets and foils are called molybdenum strips.we can produce according to the width and thickness provided by the user, smooth surface, flat, no defects such as heavy skin, delamination, cracks, cracked edges, impurities entrapment. Thickness >0.7mm is supplied in hot-rolled condition, thickness <0.7 mm; supplied in cold-rolled condition
Product specifications
Specifications of rolled molybdenum plates:
| Thickness mm | Width mm | Length mm |
| 0.05 ~ 0.10 | 150 | L |
| 0.10 ~ 0.15 | 300 | 1000 |
| 0.15 ~ 0.20 | 400 | 1500 |
| 0.20 ~ 0.30 | 650 | 2540 |
| 0.30 ~ 0.50 | 750 | 3000 |
| 0.50 ~ 1.0 | 750 | 5000 |
| 1.0 ~ 2.0 | 600 | 5000 |
| 2.0 ~ 3.0 | 600 | 3000 |
| > 3.0 | 600 | L |
Specifications of polished molybdenum plates:
| Thickness mm | Width mm | Length mm |
| 1.0 | 50 | 100 |
| 2.0 | 80 | 150 |
| 3.0 | 100 | 300 |
| 4.0-5.0 | 200 | 600 |
| 5.0-10.0 | 300 | 1200 |
| > 10.0 | 300 | 1600 |
Our company also can provide molybdenum sheets according to customers' requirements.
Chemical requirements
| Element | Ni | Mg | Fe | Pb | Al | Bi | Si | Cd | Ca | P |
| Concentration(%) | 0.003 | 0.002 | 0.005 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.001 |
| Element | C | O | N | Sb | Sn | Mo | ||||
| Concentration(%) | 0.01 | 0.003 | 0.003 | 0.0005 | 0.0001 | balance | ||||
Product detail
Features
The purity of molybdenum sheet is over 99.95%. The high-temperature rare-earth element added molybdenum sheet is also with high purity above 99%;
The density of molybdenum sheet is more than or equals to 10.1g/cm3;
The flatness is no more than 3%;
It has good performances of high strength, uniform internal organization and good resistance to high temperature creep;
The surface of molybdenum sheet may present silver gray metallic luster after chemical cleaning.
Tungsten foil from Achemetal is under vacuum annealing and leveling before delivery.
Our molybdenum sheet is approved by ASTM B 386-2003 and GB 3876-2007 and GB 3877-2006.

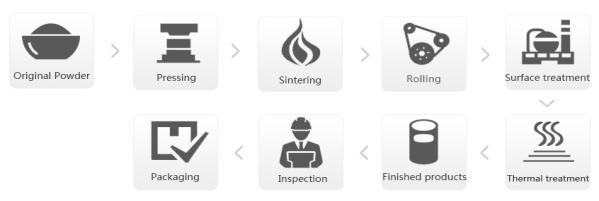

Technological process
Package and Inspection:
We offer material composition sheet and examination report which include density, flaw detection, dimensions and so on. Our products are packed in plywood case with expanded plastic. And every molybdenum sheet is separated by water proof paper.

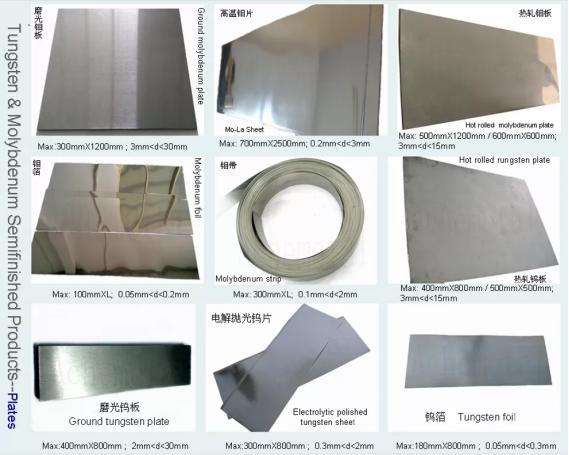

We are a China molybdenum foil manufacturer. Owning two hot rolling machine and five cold rolling machines, Achemetal Tunsgten&Molybdenum Co., Ltd. can supply vacuum annealed tungsten and molybdenum foil, sheets, plates, discs, squares and ribbons with high density and excellent mach inability. Excepting tungsten sheet, we also produce other rolled tungsten and molybdenum products, such as tungsten and molybdenum foil, Mo-La sheet, tungsten and molybdenum plate, tungsten and molybdenum discs, etc. All of our molybdenum sheets are manufactured with smooth surface, no double skin, no stratification, no crack and no impurity. They're made in accordance with the standard of ISO9001.

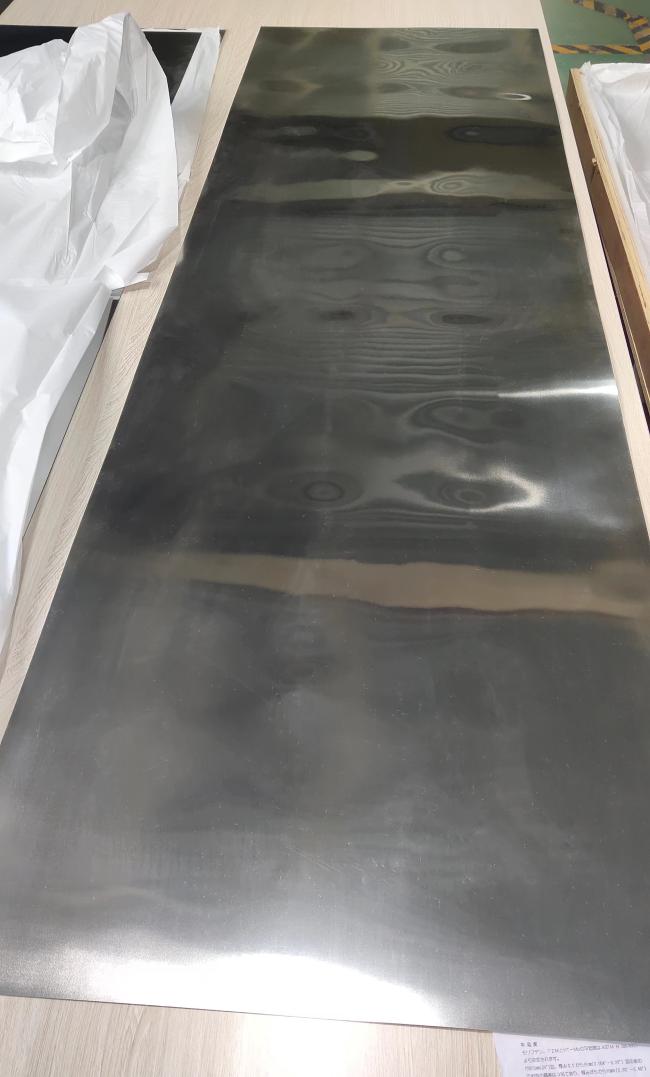

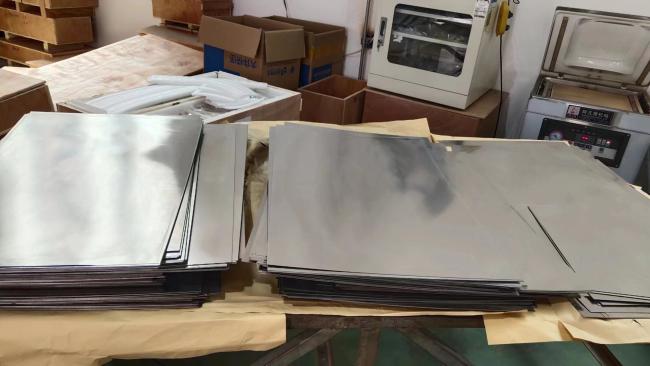

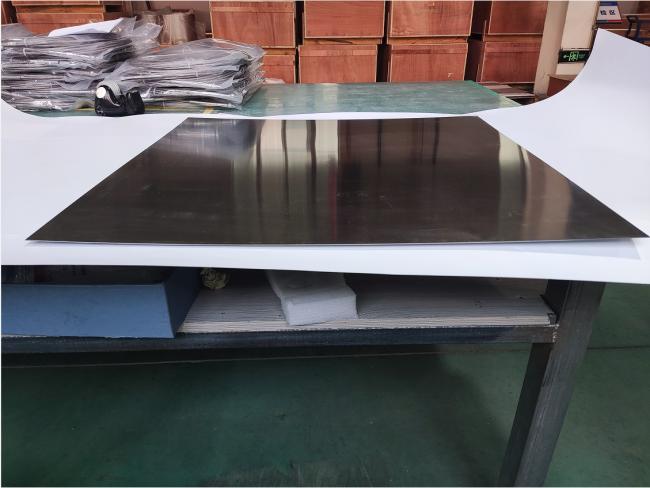

Picture Example:
Product application

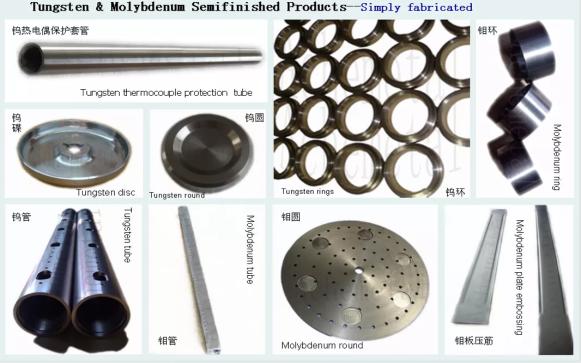

The extended tungsten-molybdenum products can be widely applied to the following fields through deep processing in the later period:
Tungsten-molybdenum shielding,tungsten-molybdenum heater,furnace support frames,loaded boats and so on in sapphire crystal furnaces and vacuum furnaces;
Guide cylinders, molybdenum hooks, rings, unloaders and so on in the industry of monocrystalline silicon;
Manufacturing of tungsten boats, molybdenum boats,cathodes,tungsten targets,molybdenum targets and so on in the vacuum coating industry;
High-temperature resisting parts such as parts of ion sources in ion implantation equipment;
Manufacturing of collimator leaves of CT machines in the medical device industry;
Heater elements,LED chip substrates,molybdenum volutes for MOCVD machines and so on in the industry of semiconductors and electronics;
