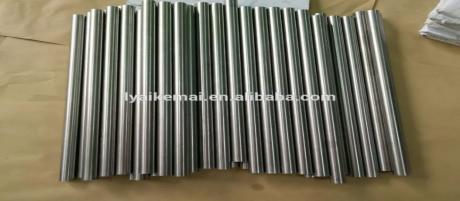

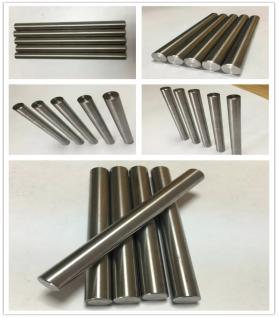

Semiconductor Industry Ta1 Tantalum Round Rod Tantalum Bar Abrasion Resistance
99.95% Pure tantalum bar/rod price per kg for semiconductor industry
Product description
Tantalum has an extremely hard texture and the hardness of 6-6.5. Tantalum is a kind of rare metal with steel grey luster, and has the melting point of 2,980℃ and the density of 16.6g/cm3. With similar performance of niobium, tantalum is an extremely stable chemical element. With high ductility, tantalum can be stretched into thin filaments or prepared into thin foils. It has extremely small expansion coefficient, only 6.6 PPM expansion after each centigrade increase. Besides, it has extremely high tenacity which is more excellent than that of copper.
Tantalum products have good high-temperature resistance, good strength, as well as excellent acid-alkali resistance and liquid metal corrosion resistance.
Product specifications
Chemical composition:
| Chemical composition, Max | |||||||||||
| Grade | C | N | O | H | Fe | Si | Ti | Ni | Nb | W | Mo |
| Ta1 | 0.004 | 0.005 | 0.02 | 0.002 | 0.005 | 0.005 | 0.002 | 0.005 | 0.050 | 0.002 | 0.002 |
Tolerance:
| Thickness (mm) | Tolerance | Width | Tolerance | Length | Tolerance | |
| Grade I | Grade II | |||||
| 0.15~0.2 | ±0.015 | ±0.02 | 50-500 | ±2.0 | 100-2000 | ±2.0 |
| ＞0.2~0.3 | ±0.020 | ±0.03 | 50-700 | ±2.0 | 100-2500 | ±2.0 |
| ＞0.3~0.5 | ±0.030 | ±0.04 | 50-700 | ±2.0 | 100-2500 | ±2.0 |
| ＞0.5~0.8 | ±0.040 | ±0.06 | 50-700 | ±1.0 | 50-2500 | ±2.0 |
| ＞0.8~1.0 | ±0.060 | ±0.08 | 50-700 | ±1.0 | 50-2500 | ±2.0 |
| ＞1.0~1.5 | ±0.080 | ±0.10 | 50-700 | ±1.0 | 50-2500 | ±2.0 |
| ＞1.5~2.0 | ±0.120 | ±0.14 | 50-700 | ±1.0 | 50-2000 | ±2.0 |
| ＞2.0~3.0 | ±0.160 | ±0.18 | 50-700 | ±1.0 | 50-2000 | ±2.0 |
| ＞3.0~4.0 | ±0.180 | ±0.20 | 50-700 | ±1.0 | 50-1500 | ±1.0 |
| ＞4.0~6.0 | ±0.200 | ±0.24 | 50-700 | ±1.0 | 50-1000 | ±1.0 |
| The thickness deviation of thin plates with the width of more than 24 inches should be ±10% of the thickness. | ||||||
Production details
Product application
Usually, tantalum is used for manufacturing Heater, heat screensand containers in high-temperature furnaces.
It is used for manufacturing digesters, heaters, coolers and other parts in the field of chemicals, metallurgy, etc.
It can be used for producing engine parts in aerospace and diving facilities, and can also be used for manufacturing slots, towers, pipelines, valves and so on of heat exchangers, heaters, concentrators and reactors in the petrochemical industry.
Skeleton repair in the field of medical treatment.
Magnetron sputtering targets.
