Water Cooling 1000w Fiber Laser Welder For Metal Stainless Steel
Handheld Welding Machine China Professional Manufacturer Fiber Laser Welding Machine For Metal Stainless Steel
Product Description

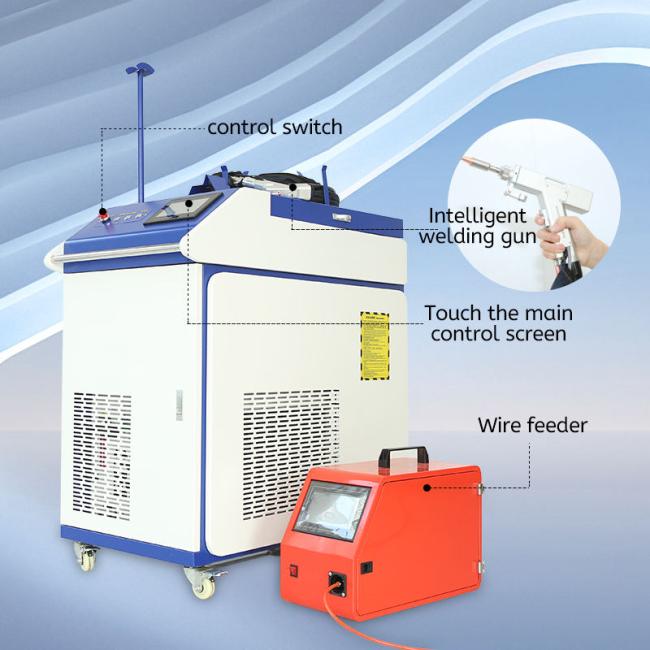

Zhongchi Handheld Fiber Laser Welding Machine is a new type high-power, high-end continuous welding tool which adopts a high-quality fiber laser source to produce a fiber optic beam. After transmission processing, the light is focused on the workpiece to achieve continuous welding. It avoids the two thresholds of thermal strain and post-treatment, and is environmentally friendly and pollution-free, greatly improving the joint strength and quality of welding.
Features
Equipment characteristics (compare the advantages of argon arc welding and electric welding)
1. Simple operation, no need for professional personnel (low staff cost)
2. No welding scar, no deformation, weld level, reduce the later polishing process, save time and cost
3. Fast welding speed, 2-10 times faster than traditional welding, one machine can save at least 2 welders a year.
Specifications
| Laser Model | LRL-HT1000W | LRL-HT1500W | LRL-HT2000W |
| Power | 1000W | 1500W | 2000W |
| Weld Requirements | <0.5mm | ||
| Fiber Length |
10/15m (Optional) |
||
| Speed | 0-120mm/s | ||
| Laser Wavelength | 1070nm±5nm | ||
| Material Protection Gas | Aluminum Plate(N2)-Stainless Steel(Ar/N2)-Carbon Steel(Co2-N2-Ar)-Galvanized Sheet(Ar) | ||
| Weld Thickness of different materials |
Stainless Steel 0.5mm Carbon Steel 0.5mm Galvanized Sheet 0.5-0.8mm |
Aluminum Plate 1.0-1.5mm Stainless Steel 0.5-2.0mm Carbon Steel 0.5-2.0mm Galvanized Sheet 0.5-1.5mm |
Aluminum Plate 1.0-2.0mm Stainless Steel 0.5-2.5mm Carbon Steel 0.5-2.5mm Galvanized Sheet 0.5-2.0mm |
Applications
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
