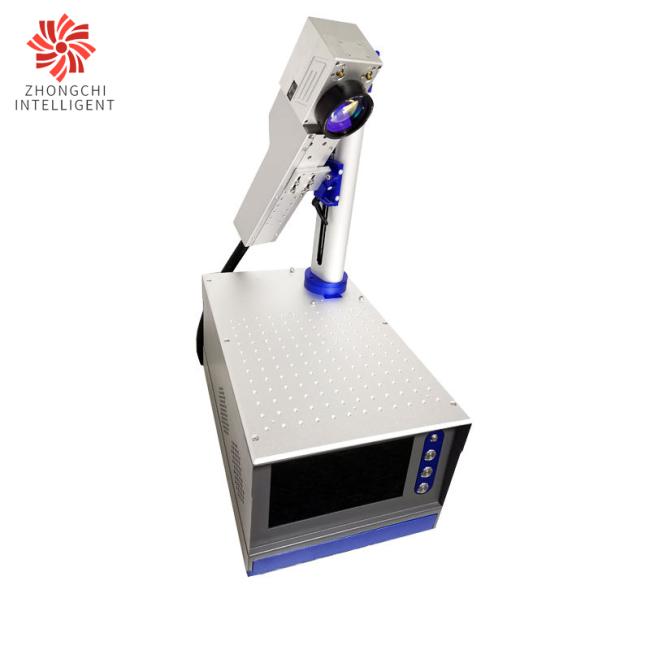

Handheld Desktop Laser Marking Machine 20W 1064nm Fiber 27 - 60 kHz
Laser Marking Machine Manufactures Handheld Laser Marking Machine Desktop Laser Marking Machine Fiber Laser Machine
Product Description
Features
1. Marking Area: 110*110mm, 175*175mm, 200*200mm, 300*300mm.However, larger working area can be realized by equipped with electric xy moving platform 300*400mm, 300*500mm etc.
2. Best Marking Effect: Owning to the orignal Raycus laser source technology, the laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker is especially good for large size seamless splicing image marking.
3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.
4. Long lifetime: the lifetime can reach 80,000 - 100,000hours.
5. No consumables, just electricity.
6. No need to adjust the laser path.
7. Free Maintenance.
8. Easy operation: Machine is installed well.We will supply the installation training video for our dear customers to install laser marking machine
Specifications
| Model | ZM-20 | ZM-30 | |
| The Laser Larameters | Laser Model |
MFP-20X
|
MFP-30X
|
| Output Power |
18.5/20W
|
30W
|
|
| The Beam Mass M2 |
≤1.4
|
≤1.4
|
|
| Pulse Repetition Frequency |
27-60 kHz
|
30-60 kHz
|
|
| The Laser Wavelength |
1064±5 nm
|
||
| Output Power Stability |
＜3%
|
||
| Designed Life | About 100,000 working hours (non-service life) | ||
| Optical Characteristics |
Marking Area | 100-150mm(Optional) | |
| Engraving Depth | ≤1mm(Depending on power and time) | ||
| Speed | ≤10000mm/s | ||
| Repeat Accuracy | ±0.002 | ||
| Minimum Mark line Width | 0.1mm | ||
| Minimum Character Height | 0.15mm | ||
| Operating Environment | Cooling Mode | Air Cooling | |
| Mains Power Supply | 500W/220V/50Hz | ||
| Temperature and Humidity | 0~40°C,30%≤RH≤85%(Requiring air conditioning when used out of range) | ||
| Oil Mist and Condensation | Not Allow | ||
| Other Parameters | Support System | Windows | |
| External Size | 390*210*615 nm | ||
| Package Size | 680*5500*270 nm | ||
| The Weight of the Machine | About 20KG | ||
Advantages
1. Marking Area: 110x110mm, 175*175mm, 200*200mm, 300*300mm.However, larger working area can be realized by equipped with electric xy moving platform 300*400mm, 300*500mm etc.
2. Best Marking Effect: Owning to the orignal Raycus laser source technology, the laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker is especially good for large size seamless splicing image marking.
3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.
4. Long lifetime: the lifetime can reach 80,000 - 100,000hours.
5. No consumables.
6. No need to adjust the laser path.
7. Free Maintenance.
8. Low Power Consumption: low cost, only 0.5kw/hour.
9. Easy operation: We will supply the installation training video for our dear customers to install laser marking machine.
Applications
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
