20W 30W Portable Metal Laser Engraving Machine 100W FDA 50W
Desktop Mini Portable Fiber Laser Marking Machine Engraving Machine Manufacturers 20w 30w 50w 100W For Metal Steel

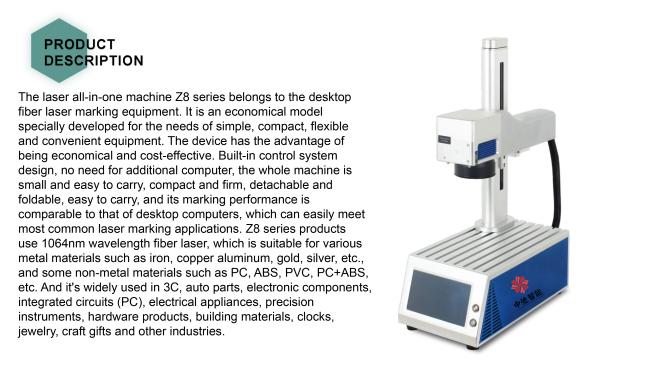

Product Description
Features
1. Fast speed, high precision, using high-performance all-digital galvanometer scanning system
2. Long service life, Air cooling system, truly maintenance-free
3. The equipment is small in size, stable and reliable in work
4. High electro-optical conversion efficiency, no consumables, low power consumption
5. when power off, can use battery and car cigarette lighter continue to work
6.It can mark barcodes, text graphics, two-dimensional codes, etc., and supports PLT, DXP, BMP andother file formats.
Specifications
| Model | ZM-20 | ZM-30 | |
| The Laser Larameters | Laser Model |
MFP-20X
|
MFP-30X
|
| Output Power |
18.5/20W
|
30W
|
|
| The Beam Mass M2 |
≤1.4
|
≤1.4
|
|
| Pulse Repetition Frequency |
27-60 kHz
|
30-60 kHz
|
|
| The Laser Wavelength |
1064±5 nm
|
||
| Output Power Stability |
＜3%
|
||
| Designed Life | About 100,000 working hours (non-service life) | ||
| Optical Characteristics |
Marking Area | 100-150mm(Optional) | |
| Engraving Depth | ≤1mm(Depending on power and time) | ||
| Speed | ≤10000mm/s | ||
| Repeat Accuracy | ±0.002 | ||
| Minimum Mark line Width | 0.1mm | ||
| Minimum Character Height | 0.15mm | ||
| Operating Environment | Cooling Mode | Air Cooling | |
| Mains Power Supply | 500W/220V/50Hz | ||
| Temperature and Humidity | 0~40°C,30%≤RH≤85%(Requiring air conditioning when used out of range) | ||
| Oil Mist and Condensation | Not Allow | ||
| Other Parameters | Support System | Windows | |

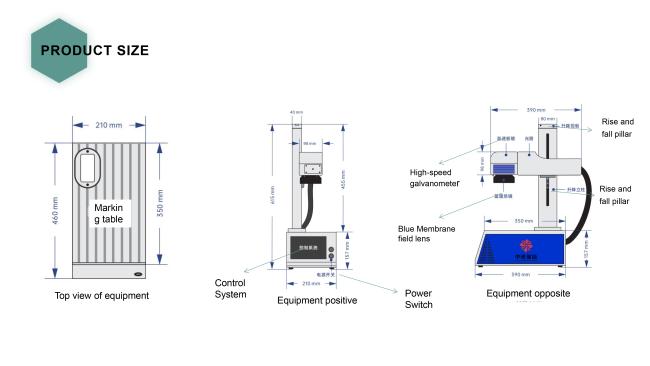

| External Size | 390*210*615 nm | ||
| Package Size | 680*5500*270 nm | ||
| The Weight of the Machine | About 20KG | ||
Marking Effect
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
About us
ZHONGCHI INTELLIGEN TECHNOLOGY(SHENZHEN) CO., LTD is a collection of research and development, production, sales, after-sales and provide national customers with laser technology overall solutions and related supporting facilities of the enterprise, the main products include three series:
1.Laser welding machine series and supporting products;
2. 3D Laser engraving machine series and supporting products;
3.Laser marking machine series and supporting products;
Our products are widely used in electronic circuits, instruments and meters, computer manufacturing, mobile communications, household appliances, kitchen and bathroom, auto parts, precision instruments, hardware tools, city lights, jewelry, craft gifts, food and pharmaceutical packaging industry and other fields. Lingrui automation according to the ISO9001 quality control system and ISO14001 environmental management system, has been shaped products in the incoming material, processing, machine, shipment of each link strict control, to ensure the performance and quality of products shipped. Our company always adhere to the "service as the basis, quality for survival, technology for development" business philosophy, adhering to the "integrity, gratitude, win-win, sustainable" spirit of enterprise, to provide our customers with professional technology and intimate after-sales service.
