EZCAD System Metal Fiber Laser Marking Machine / Fiber Optic Laser Engraver
Fiber Laser Marking Machine For Metal Laser Marking Machine Fiber Optic Laser Engraving Machine Best Price And Quality

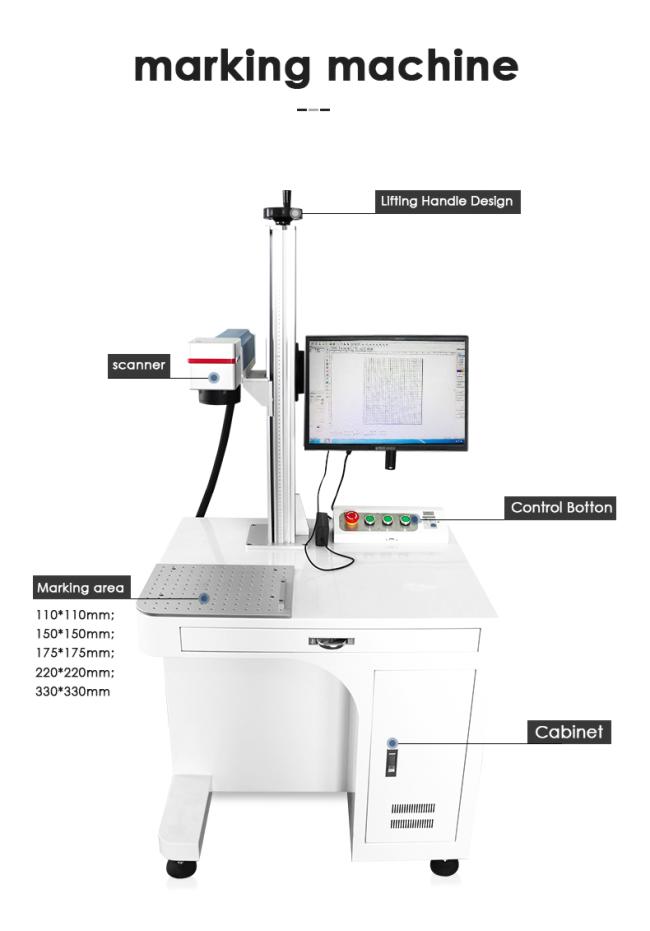

Description of Laser Marking Machine
Fiber Marking Machine is the most popular marking machine in recent years, which is especially suitable for metal materials marking. Our marking machine adopts high quality fiber lasers and high stability vibration mirror system, which can easily meet most common laser marking applications, such as metal/nonmetal /plastic characters, text patterns, logo marks, QR code marking and used in the field of high precision of marking.
Specifications of Fiber Laser Marking Machine
| The product name | Fiber Laser marking machine |
| Laser Type | Fiber laser |
| Laser Power | 20W 30W 50W(Optional) |
| Laser Wavelength | 1064nm |
| Marking Depth |
≤1.2mm(According to different materials) |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| Marking Area | 110*110mm(Optional) |
| Focus Spot Diameter | <0.01mm |
| Cooling Mode | Air Cooling |
Applications of Fiber Laser Marking Machine
Applicable Industry:auto industry,medical equipments , electronic components, IT industry, hardware industry, precision apparatuses, crafts, high-low-voltage appliances, etc
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
After Sales Service
# 12months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
