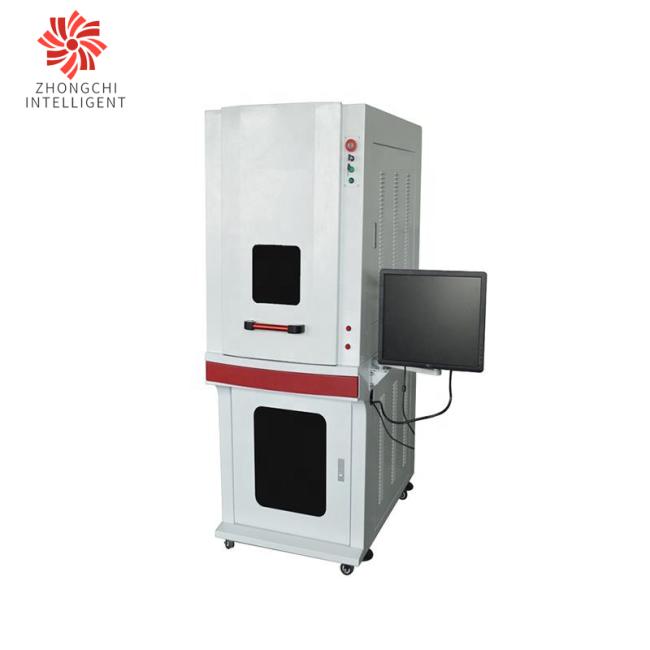

20w Laser Marking Machine 3d Laser Marking Machine Pcb Laser Marking Machine Laser Engraving Machine



Product Description



  Fiber laser marking machine main components: Fiber laser marking machine is mainly composed of fiber laser, high-speed scanning galvanometer, marking software, industrial control computer and electric control cabinet components. Fiber laser marking machine is the use of laser beam on a variety of different material surface permanent marks. The marking effect is through the evaporation of the surface material to reveal the deep material, or through the light energy to cause chemical and physical changes in the surface material to "carve" the trace, or through the light energy to burn part of the material, to show the desired etching pattern, text, bar code and other types of graphics.



Features



1. Servo XY movement platform, industrial PC control, modular flexible programming design.
2. Standard green laser (other lasers are also optional), the minimum can be engraved 1.6mmx1.6mm up to 16 characters of the two-dimensional code.
3. Coaxial CCD technology, precise positioning, and reading, recognition of two-dimensional code level (adapted to AIM DPM, AS9132 and other standards).
4. Three-color light source lighting: color can be three-color switch, easy to read the carved signs of different color boards.



Specifications



Circuit Board Size	Minimum 50mm*50mm, Maximum 400mm*300mm (Customizable)
Circuit Board Thickness	0.6-4mm
Repeated Positioning Accuracy	±0.02mm
Minimum Line Width	< 0.005mm
Bar Codes	Code128, CODE39, EAN-8, UPC-A Bar codes, DataMatrix, QR codes
Working Platform	X-Y linear module
Positioning System	Paraxial CCD camera
External Auxiliary Device	Negative pressure adsorption and dust extraction system
Power Protection (Optional)	The UPS can run without power for 10 minutes
Power Supply	220V, 50Hz, or 2KW
Air Supply	0.6mpa
Environment Requirements	5-35 degrees, humidity less than 50%
Overall Dimensions	1050mm x 1150mm x 1700mm



Applications









FAQ



1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.

2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.

3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .

4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.

5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
