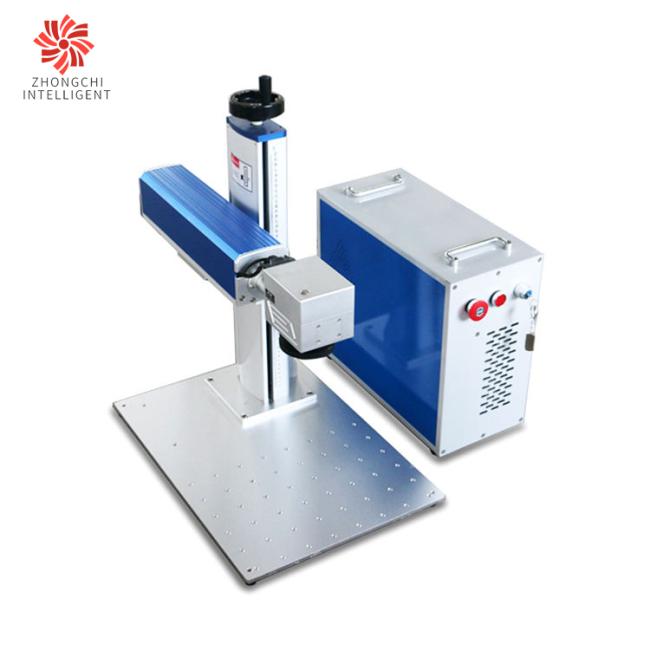

Pulsed Portable Mini Fiber Desktop Laser Marking Machine 0.1mm Mark Line Width
Mini Laser Marking Machine Laser Marking Machine Fiber Laser Marking Machine Desktop Fiber Laser Marking Machine
Product Description of Desktop Laser Marking Machine
Fiber Laser Marking and Engraving Machine is a kind of laser engraving machine which adopts fiber laser source for metal and non-metal engraving.
Features of Desktop Laser Marking Machine
1.Easy and quick installation, USB connected with computer easily
2. Low Cost: high turnover ratio between electricity and laser, the whole machine power
consumption is less than 500W, which is 1/10 of light pumping source laser
3.Free-Maintenance Operation: There is no need of any maintenance for laser, or cleaning the lens.
Specifications of Desktop Laser Marking Machine
| Model | ZM-20 | ZM-30 | |
| The Laser Larameters | Laser Model |
MFP-20X
|
MFP-30X
|
| Output Power |
18.5/20W
|
30W
|
|
| The Beam Mass M2 |
≤1.4
|
≤1.4
|
|
| Pulse Repetition Frequency |
27-60 kHz
|
30-60 kHz
|
|
| The Laser Wavelength |
1064±5 nm
|
||
| Output Power Stability |
＜3%
|
||
| Designed Life | About 100,000 working hours (non-service life) | ||
| Optical Characteristics |
Marking Area | 100-150mm(Optional) | |
| Engraving Depth | ≤1mm(Depending on power and time) | ||
| Speed | ≤10000mm/s | ||
| Repeat Accuracy | ±0.002 | ||
| Minimum Mark line Width | 0.1mm | ||
| Minimum Character Height | 0.15mm | ||
| Operating Environment | Cooling Mode | Air Cooling | |
| Mains Power Supply | 500W/220V/50Hz | ||
Applications of Desktop Laser Marking Machine
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
