Water Cooling Laser Fiber Marking Machine 220V Laser Engraving Machine For Metal
China Uv Laser Marking Machine Laser Marking Machine Laser Marking Engraving Machine Laser Marker For Metal

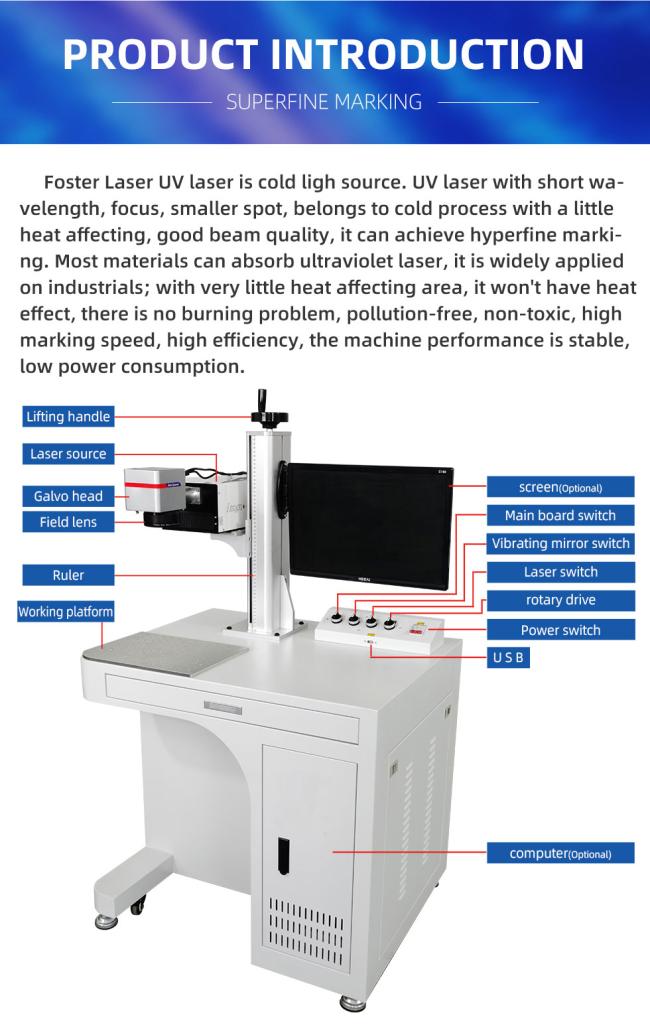

Product Description of Uv Laser Marking Machine
Specifications of Uv Laser Marking Machine
| Ultraviolet Laser Marking Machine | |||
| Laser Models | LRL-PL3W | LPL-PL5W | LPL-PL8W |
| Power | 3W | 5W | 8W |
| Laser Wavelength | 355nm | 355nm | 355nm |
| Marking Area | 70*70mm-200*200mm(Optional) | ||
| Electricity Demand | 220V±22V/50Hz/15A | ||
| Marking Depth | 0.01-0.3mm | ||
| Cooling System | Water Cooling or Air Cooling | ||
| Life of the laser machine | ﹥100,000 hours | ||
| Repeated Accuracy | ±0.003mm | ||
| Minimum Character | 0.1mm | ||
| Engraving Speed | ≤12000mm/s | ||
| Whole electrical power | ≤4KW |
||
| Machinery Test Report | Provided | ||
| Video outgoing-inspection | Provided | ||
Features of Uv Laser Marking Machine
1. UV Laser marking and engraving Machine adopts UV laser generator .
2. The machine adopts high quality and imported UV laser generator.
3. It is used in the material that have big heat radiation reaction, some special materials, most metal and nonmetal materials.
4. It is applied in ultra-fine laser Engraving in high-end market.
5. No Consumables, Super Long lifespan & Maintenance Free
UV laser unit is a side pump solid laser source solution, It has the narrowest wavelength of only 355nm, could brings you best marking effect with much lower heat effect. It has all the advantages of printing machines, with clear marking effect, easy to read. And when you touch the marking area, you can feel nothing, it just like printed on.
6.Simple Operation
Our software supports almost all common formats, the operator does not have to understand programming, just simply set a few parameters and click start.
7.High Speed Laser Marking
The Marking accuracy could reach up to 0.001 mm while repositioning accuracy is 0.002mm.
8.Multi-functional
It could Mark/Code/Engrave un-removable serials Numbers, batch Numbers, Expiry info,
Best Before date, logo & any Characters that you want. It could also mark QR code for promoting activities or product sales district tracking and traceability.
Applications of Uv Laser Marking Machine
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
