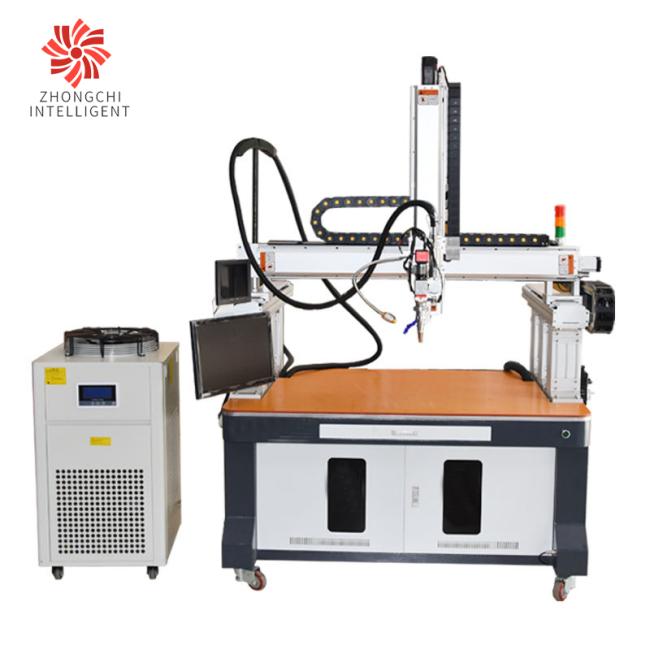

1064nm Laser Fiber Welder PLC Controller With Scanning Galvanometer
Galvanometer Laser Laser Spot Welding For Metal Laser Automatic Fiber Laser Welding Machine With Scanning Galvanometer
Description of Galvo Laser Welder
Galvanometer Welding Machine adopts integrated design, compact and beautiful structure, with high output power and stable energy, good beam mode, easy operation, reliable performance and wide range of use and so on. The ceramic laser cavity technology imported from Britain is adopted, and the special beam mode selection and shaping technology is used to ensure high output power and excellent beam mode. Double pulse xenon lamp excitation, constant current laser power supply, pulse programmable and intelligent system management, and has the automatic protection of misoperation and over temperature and under water flow. PLC programmable controller or industrial PC control, X/Y axis two - dimensional automatic moving platform. The semiconductor red light indicates the positioning, which can be manually moved up and down the incident Angle of the focusing and deflecting laser.
Features of Galvo Laser Welder
1. Using high-speed scanning galvanometer for laser positioning, the speed can reach 7000mm/ second, greatly reducing the empty travel time between welding positions.
2. Digital galvanometer interface, strong anti-interference ability, better stability, simple operation, convenient, galvanometer scanning laser welding machine provides special laser welding software based on Windows platform, welding points or graphics can be directly input in its special software, edit, can also be Auto,CAD,Core DRAW and other software for editing, and then through its special welding software import graphics for processing
3. High stability, double closed loop precision control, to ensure the energy of each solder joint uniform.
Specifications of Galvo Laser Welder
| Laser Model | LRL-GM200W | LRL-GM300W | LRL-GM400W |
| Power | 200W/300W/400W(Optional) | ||
| Laser Wavelength | 1064nm | ||
| Total Power | ≤6KW | ||
| Welding Area | 100*100-200*200mm(Optional) | ||
| Depth of Weld | 0.1-1.2mm | ||
| The Water Machine Power | 2-3P | ||
| Minimum spot diameter for welding | 0.2mm | ||
| Water Cooling Ambient Temperture | 20-40°C | ||
| Pulse Frequency | ≤100Hz | ||
| Power Demand | 220V±5V/50Hz | 380V±5V/50Hz | |
Applications
Simples Show
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
