50W 1064um Plastic Laser Engraving Machine / Air Cooling Metal Engraving Equipment
Fiber Laser Marking Machine China Manufacturers 50W Laser Engraving Machine For Metal Or Plastic Online Production

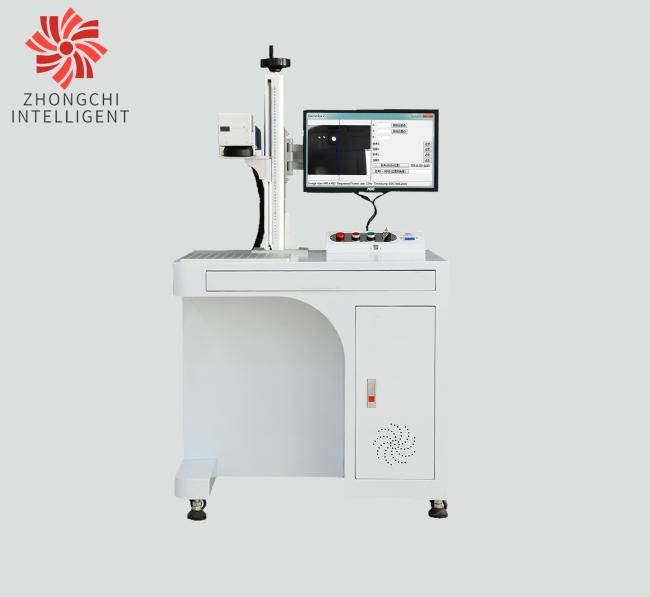

Description of Fiber Laser Marking Machine
Fiber laser marking machine is a new generation of laser marking machine system developed by using the world's most advanced laser technology. Using fiber output laser, and then through the high-speed scanning galvanometer system to achieve the marking function, focusing spot diameter is less than 20um, electro-optic conversion efficiency up to 30%. This product uses air cooling with small machine size and good output beam quality. Compared with the traditional laser machine, it has the functions of high efficiency, long life and free maintenance.
Specifications of Fiber Laser Marking Machine
| Fiber Laser Marking Machine Series Technical Specifications | |||
| Fiber Laser Models | LRL-RL20W | LRL-RL30W | LRL-RL50W |
| Power | 20W | 30W | 50W |
| Laser Wavelength | 1064um | 1064um | 1064um |
| Marking Area | 100*100mm-300*300(Cusomizable) | ||
| Marking Depth | <1.2mm | ||
| Electricity Demand | 220V±10%/50Hz/4A | ||
| Minimum character size | 0.15mm | ||
| Output Power Adjustment Range | 10%-100% | ||
Applications of Fiber Laser Marking Machine
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2017 ,now in Shenzhen China. Committed to providing the
majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a one-year warranty. In warranty, we will provide the broken items free of charge.Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
