Building Material 7050 T7451 Aluminum Plate Aluminum Sheets 0.8mm-200mm

7050 Aluminium Plate Aluminum Plain Sheet For Building Material

Performance of 7050 Aluminum Plate:

7050 aluminum plate is a high-strength heat-treatable alloy. It is based on 7075 aluminum alloy, which increases the Zn, Cu content and Cu / Mg ratio to increase the strength, and replaces Cr with Zr to overcome the quenching sensitivity problem and inhibit recrystallization. 7050 aluminum plate is an alloy that has been around for decades and is known for its ability to remain strong over time. Although other alloys are available which are stronger on a one-off comparison basis, they do not necessarily demonstrate the longevity which the 7050 products can offer.

Aluminum plate 7050-T7451 is similar to the other popular 7000 series aluminum alloy 7075, however it is less quench sensitive.This allows the alloy to maintian strength properties over time better than other high strength alloys, especially in thick sections. 7050 aluminum also displays better corrosion resistance, exfoliation resistance, and toughness than standard high strength alloys making it very popular in the aerospace industry.

Chemical Composition of 7050 Aluminum Plate (%):

Mechanical Properties of 7050 Aluminum Plate:

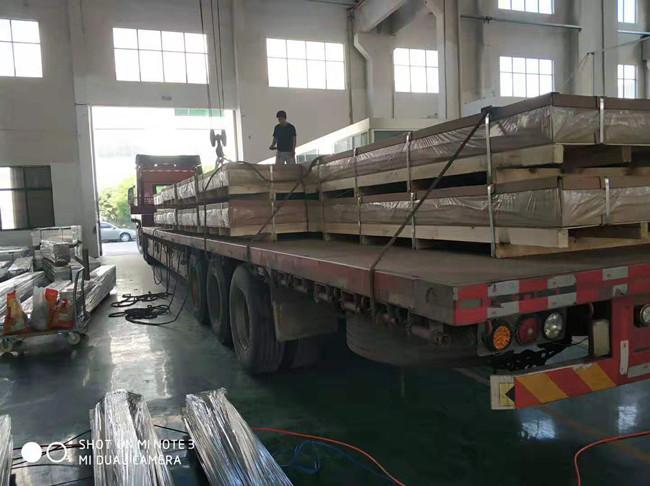

Packing & Delivery of 7075 Aluminum Plate:

1. Packing: In bundle with steel strip or packed in wooden pallets or as customers requirement.
2. Trade terms: FOB/CIF
3. Port of Loading: Shanghai/Ningbo/Guangzhou
4. Shipment:

     a. Length: ＜6m, loaded in 20GP container (inside: 5690*2150*2190mm)

     b. Length: ＜12m, loaded in 40GP container (inside: 11890*2150*2190mm)
5. Delivery time: Normal size: 3-7 days send from warehouse directly; Special size: 10-20 days customized for you.

Usages of 7050 Aluminum Plate:

7000 series Aluminum alloys have been the preferred choice for aerospace and aircraft applications ever since the introduction of commercial aircraft building in the post WWII era. Offering designers very high strength, low manufacturing costs, and a low replacing risk, the 7xxx series are alloys of choice in applications where strength is the primary requirement.

1) Main uses:

Aircraft structural parts. Used for medium and heavy plate extrusion, free forging and die forging. Common applications for 7050 aluminum plates include bulkheads and fuselage frames that require a cross-sectional thickness of between 2 and 6 inches. Another common application is for wing skin. Most applications of this metal are for thicknesses greater than 2 inches, which makes this metal an excellent choice.

2) Other uses:

It can also be applied to various molds, fixtures, mechanical equipment and high-end aluminum alloy bicycle frames.
