Cold Rolled 1050 1060 1100 Aluminum Coil 1000mm 1200mm 1500mm Width
1050 1060 1100 Cold Rolled Aluminum Coil 1000mm 1200mm 1500mm Width
Properties of 1050 Aluminum Coil:
1050 aluminum coil belongs to commercially pure wrought family with a purity of 99.5% Aluminum. Except Al, 0.4% of Fe is added to 1050 aluminum sheet, thus, it has high electrical conductivity.
Besides, 1050 aluminum coil is non-heat treatment series is produced in extruded sections. 1050 aluminum coil has high ductility and high reflective finish. It has excellent cold workability, braze-ability and solder-ability, and it is strengthened by cold working. However, 1050 aluminum coil has low mechanical strength compared to more significantly alloyed metals. All of these characteristics make 1050 aluminum coil well suited to chemical and electrolytic brightening but not in casting. Last but not least, moderate strength and good anodizing quality enables our products has a vast application.
Chemical Composition of 1050 Aluminum Coil (%):
| Elements | Si | Fe | Cu | Mn | Mg | Zn | Ti | V | Al |
| Contents | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.05 | 99.5 |
Mechanical Properties of 1050 Aluminum Coil:
| Temper | Specifications | Tensile Strength | Yield strength | Elongation |
| Thickness(mm) | (MPa) | (MPa) | (%) | |
| 1050-H12 | 0.2-0.5 | 85-125 | Min 65 | Min 2 |
| 0.5-1.5 | Min 4 | |||
| 1.5-3.0 | Min 5 | |||
| 3.0-6.0 | Min 7 | |||
| 6.0-12.5 | Min 9 | |||
| 12.5-40.0 | ||||
| 1050-H14 | 0.2-1.5 | 105-145 | Min 85 | Min 2 |
| 1.5-3.0 | Min 4 | |||
| 3.0-6.0 | Min 5 | |||
| 6.0-12.5 | Min 6 | |||
| 12.5-25 | ||||
| 1050-H16 | 0.2-0.5 | 120-160 | Min 100 | Min 1 |
| 0.5-1.5 | Min 2 | |||
| 1.5-4.0 | Min 3 | |||
| 1050-H18 | 0.2-0.5 | Min 135 | Min 120 | Min 1 |
| 0.5-1.5 | Min 140 | Min 2 | ||
| 1.5-3.0 | Min 2 | |||
| 1050-H19 | 0.2-0.5 | Min 155 | Min 140 | Min 1 |
| 0.5-1.5 | Min 150 | Min 130 | ||
| 1.5-3.0 | ||||
| 1050-H22 | 0.2-0.5 | 85-125 | Min 55 | Min 4 |
| 0.5-1.5 | Min 5 | |||
| 1.5-3.0 | Min 6 | |||
| 3.0-6.0 | Min 11 | |||
| 6.0-12.5 | Min 12 | |||
| 0.5-1.5 | ||||
| 1.5-3.0 | Min 3 |
Applications of 1050 Aluminum Coil:
1050 aluminum coils are often used in daily necessities, lighting fixtures, reflectors, decorations, chemical industrial containers, heat sinks, signs, electronics, lamps, nameplates, electrical appliances, stampings, and other products. In some cases where high corrosion resistance and formability are required, but the strength is not high, chemical equipment is a typical use.

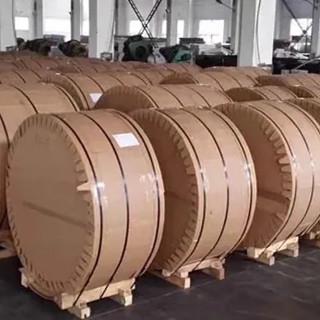

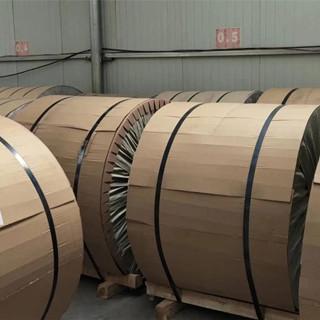

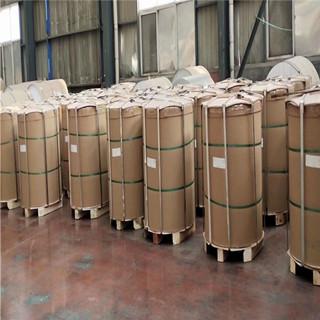

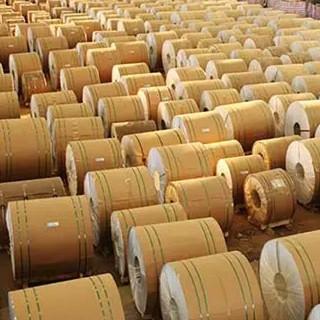

Packaging of 1050 Aluminium Coil:
Informations of 1050 Aluminum Coil:
1-A: Equivalent name of 1050 aluminum
A1050, 1050a, aa1050, 1050aa, al1050, al1050a, a 1050, aa 1050, jis a1050p, al1050 class, aw1050, en1050 grade etc.
1-B: 1050 aluminum alloy temper
Soft HO, H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25, H26, H27, H28, H29, H30, H31, H32, H33, H34, H35, H36, H37, H38, H39, H46, H48, H111, H112, H114, H116, H131, H321 etc
1-C: 1050 aluminum coil surface treatment
color coated, PE prepainted, anodized, PVDF pre-painted, powder coating, mirror, polysurlyn laminated, embossed stucco, etc
