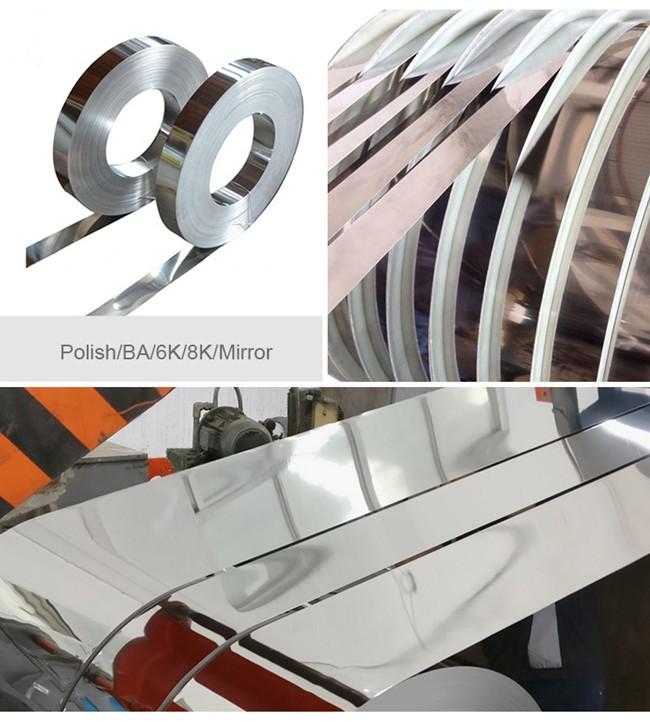

Width 500mm-2500mm SS 304 Strips Cold Rolled SS 304 Precision Strip
304 Stainless Steel Strips Cold Rolled SS 304 Precision Strip
304 Stainless Steel Strip Features:
The most important elements in 304 stainless steel strip are Ni and Cr, but they are not limited to these two elements. The specific requirements are stipulated by the product standards. The common judgment in the industry is that as long as the Ni content is greater than 8% and the Cr content is greater than 18%, it can be considered as 304 stainless steel. 304 stainless steel strip has good corrosion resistance, heat resistance, low-temperature strength and mechanical properties. It also has good corrosion resistance to alkaline solutions and most organic and inorganic acids. It is resistant to corrosion in the atmosphere. If it is an industrial atmosphere or a heavily polluted area, it needs to be cleaned in time to avoid corrosion. It is suitable for food processing, storage and transportation. Has good processing properties and weldability.
304 Stainless Steel Strip Chemical Composition (%):
| Element | Minimum percentage | Maximum percentage |
| C | – | 0.08 |
| Si | – | 1.0 |
| Mn | – | 2.0 |
| P | – | 0.045 |
| S | – | 0.03 |
| Cr | 18 | 20 |
| Ni | 8 | 11 |
304 Stainless Steel Strip Mechanical Property:
| Grade | Yield Strength Rp0.2 (N/mm²) |
Tensile Strength Rm (N/mm²) |
Hardness | Vickers Hardness (HV) |
Elongation A80 % Min. |
| 304 | ≥205 | ≥520 | ANN | Max200 | ≥40 |
| ≥450 | ≥700 | 1/4 Hard | 220-250 | ≥20 | |
| ≥700 | ≥850 | 1/2 Hard | 250-310 | ≥8 | |
| ≥880 | ≥1000 | 3/4 Hard | 310-370 | ≥4 | |
| ≥1020 | ≥1150 | Full Hard | ≥370 | ≥1 |
304 Stainless Steel Strip Applications:
304 stainless steel strip is the most widely used chromium-nickel stainless steel strip.
It has good corrosion resistance, heat resistance, low temperature strength and mechanical properties.
This strip has good hot workability such as stamping and bending without heat treatment. It is resistant to corrosion in the atmosphere.
It is suitable for food processing line, storage and transportation, plate heat exchangers, bellows, household products, auto parts, medical appliances, building materials, chemicals industry, food industry, agriculture, ship parts, etc.
304 stainless steel is a nationally recognized food grade stainless steel material.
304 Stainless Steel Strip Production Process:
For 304 stainless steel strip production process, here you will be able to get a clear understanding of how to manufacture it with precision excellence technology:
1) Technical Analysis
2) Raw Material Preparation
3) Rolling And Bright Annealing Process
4) Degrease Cleaning Process
5) Tension Straightening Process
6) Slitting Process
7) Inspection Process
8) Packaging Process
