L Shaped Fluoropolymer PTFE Immersion Heater Industrial Chemical Tank Heaters

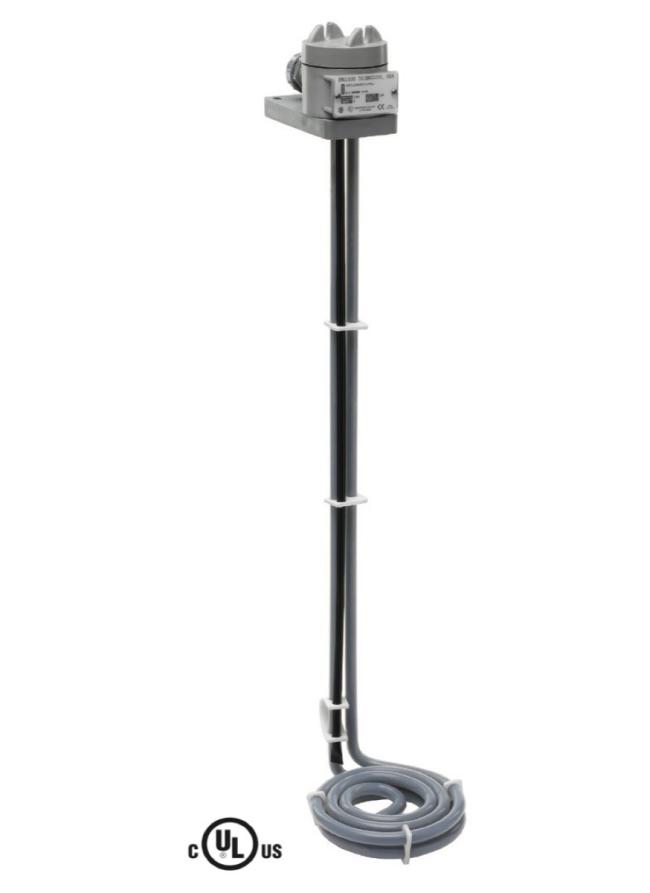

Low Profile L-Shaped Fluoropolymer (PTFE) Heaters - Electric Chemical Heaters for Industrial Chemical Tanks

Compatible with virtually any chemistry

Excellent chemical resistance to aggressive acids! Low profile, bottom design. Inert to most solutions with a corrosion reisistant head. Low watt density. Built-in thermal protector and grounded element. Corrosion-resistant head. Heats up to 212°F (100°C). 500-6000 watts, 120-600 volts.

*Specify vertical length by adding height in inches after "R". **Specify thermal overload protection desired. Example: HXFL2208-R24-P1. Single phase only. Guards recommended. This configuration is not recommended for electroless chemistry, phosphoric acid, or applications prone to sludge buildup. Longer vertical lengths and flexible risers available, consult factory.

Single phase only. This configuration is not recommended for electroless chemistry or applications prone to sludge buildup. Heaters in excess of 24 amps may require a non-standard head with 3/4' conduit, please consult factory.

PRODUCT DESCRIPTION

Excellent chemical resistance to aggressive acids.

• FEATURES

  • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).

  •

  • Low watt density design 10 watts/square inch (1.5w/cm²).

  •

  • 4 foot (1.2m) continuous fluoropolymer (PTFE) cable leading to a vapor resistant terminal enclosure and 3 ft (.9m) flexible PVC liquid tight conduit.

  •

  • Certification: cULus. CE certified (except 600 volts).

• SPECIFICATIONS

  • 500 - 6000 watts



  • 120 to 600 volts (600 volts on 4500 watts or lower only)

• OPTIONS AVAILABLE (CONSULT FACTORY)

  • Resettable thermal protectors



  • Polypropylene guards (sold separately)



  • Custom configurations and lengths

  • Custom wire and conduit lengths
