CE UL CSA PTFE Immersion Electric Heaters Stainless Steel Tank Heater
PTFE Immersion Electric Heaters for Chemicals & Plating Process
Description

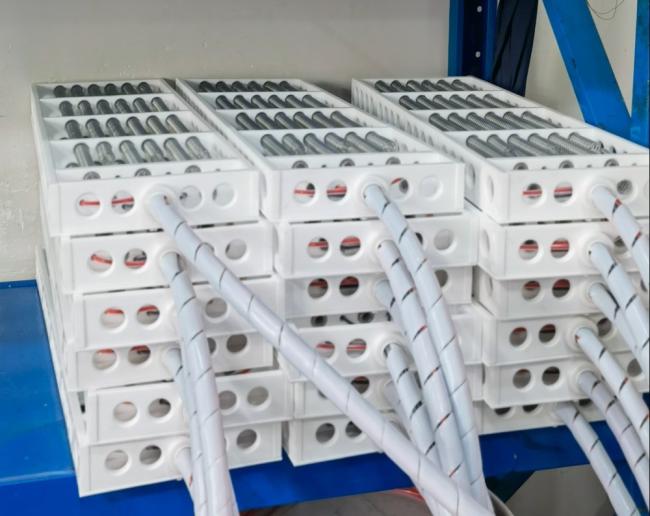

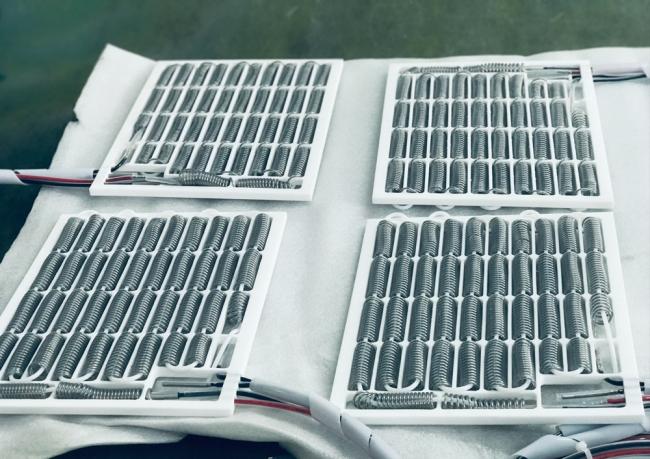

FLAT ASSEMBLY TYPE B – PTFE Immersion Heater
Power from 0.5 kW to 15 kW
With a fixing bracket for an easy installation on the side of the tank
Minimum bulk
Models adapted to all installations on the side of the tank. With a PVDF or PP fixing bracket to secure the heater on the side.
Recommended up to 18 kW.
Assembly Type B
On metallic frame coated PP, PVDF, FEP or stainless steel frame.Standard configuration: heating cable coated Teflon® FEP and metallic frame coated PP or PVDF. For use on the side of the tank. Available for heaters with reference beginning with P30, P40 and P90.
Accessories and Options:
REMOVABLE GUARDS FOR B
Perforated plastic guard in PP or PVDF.
ref in PP : PRPPP, ref in PVDF : PRPPF
CABLE GLAND, 75MM DIAMETER
Allow 300 mm extra on the H length (H=installation height on N)
ref in PP : PEPP, ref in PVDF : PEPF
EXTRA LENGTH OF CABLES
Electrical cable C of type HO5 VV-F or HO7 RN-F. Non heating cable N to go out of the tank.
| Watts | Voltage | Phase | Dimension(mm) | Model Number | SHIP Wt.(kg) |
| 2000 | 120-600 | Single or Three | 300×150×40 | TFP2-12 | 3.5 |
| 3000 | 240-600 | Single or Three | 350×180×40 | TFP3-14 | 4.5 |
| 4500 | 240-600 | Single or Three | 450×200×40 | TFP4.5-18 | 6 |
| 6000 | 240-600 | Single or Three | 600×250×50 | TFP6-24 | 7 |
| 9000 | 240-600 | Single or Three | 750×350×50 | TFP6-30 | 8 |
| 10000 | 240-600 | Single or Three | 800×450×50 | TFP10-32 | 9 |
| 12000 | 240-600 | Single or Three | 900×500×50 | TFP12-36 | 10 |
| 15000 | 240-600 | Single or Three | 1000×600×50 | TFP15-40 | 11 |
| 18000 | 240-600 | Single or Three | 1100×700×50 | TFP18-43 | 12 |
