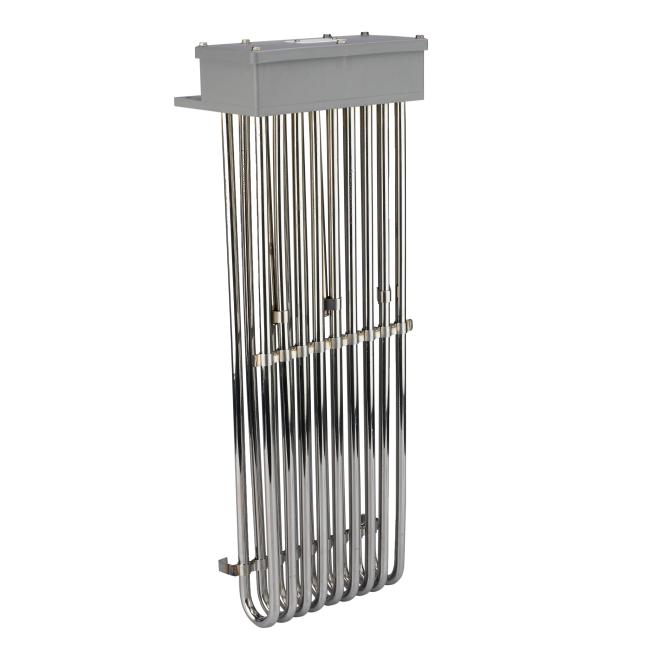

Tubular Industrial Electric Immersion Heater Nine Elements 316 Stainless Steel Heaters
Nine Elements 316 Stainless Steel Heaters for Surface Finishing Industry
| WATTS | VOLTS |
Hot zone mm/in |
Overall mm/in |
Model No. |
Ship WT. Lbs./Kg |
| 9000 |
240 480 |
255(10) | 430(17) |
9HSP9217 9HSP9417 |
16 (7.5) |
| 13500 |
240 480 |
405(16) | 585(23) |
9HSP13.5223 9HSP13.5423 |
19 (9) |
| 22500 |
240 480 |
510(20) | 735(29) |
9HSP22.5229 9HXP22.5429 |
23 (10.5) |
| 31500 |
240 480 |
635(25) | 865(34) |
9HSP31.5234 9HSP31.5434 |
25 (11.5) |
PRODUCT DESCRIPTION
Durable, efficient chemical heater.
-
FEATURES
-
Heavy wall metal sheaths available in 316 stainless steel.
-
Watt densities up to 40 watts/square inch (6.2 w/cm²).
-
Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
-
Grounded construction and built in thermal protector. Replaceable protector standard for solutions up to 150°C
-
-
SPECIFICATIONS
-
9000 - 31500 watts
-
208 to 600 volts
-
-
OPTIONS AVAILABLE (CONSULT FACTORY)
-
Resettable thermal protectors
-
All metal terminal enclosures.
-
Custom configurations and lengths
-
Custom wire and conduit lengths
-
