Quartz Electric Immersion Heater Over The Side Immersion Heaters For Acidic Solutions
Quartz Immersion Heaters by Industrial Heating Systems for Acidic Solutions
For acidic solutions

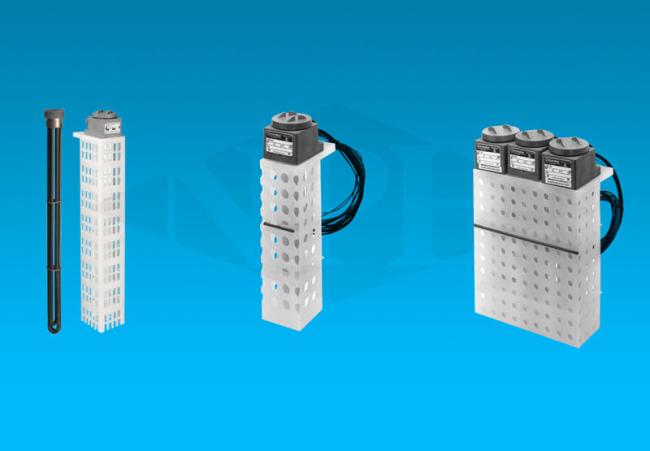

Compatible with many aggressive chemistries. Heavy wall metal element, quartz sheath and polypropylene guards (sold independently for assembly). For use in most aqueous acidic plating solutions and pickling tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection. Single phase. Heats up to 180°F (82°C). 500-30000 watts, 120-600 volts.
| WATTS | VOLTS |
Hotzone IN./MM |
Overall IN./MM |
Model No. With Guard |
Ship Wt. LBS/Kg. |
| 500 |
120 240 |
6(153) | 12(305) |
QMP.5112 QMP.5212 |
9 (4) |
| 1000 |
120 240 |
6(153) | 12(305) |
QMP1112 QMP1212 |
10 (4.5) |
| 1000 |
120 240 |
7(180) | 17(430) |
QMP1117 QMP1217 |
11 (5) |
| 2000 |
240 480 |
12(305) | 18(457) |
QMP2217 QMP2417 |
11 (5) |
| 2000 |
240 480 |
12(305) | 23(585) |
QMP2223 QMP2423 |
14 (6.5) |
| 3000 |
240 480 |
18(457) | 24(610) |
QMP3224 QMP3424 |
14 (6.5) |
| 3000 |
240 480 |
18(457) | 29(735) |
QMP3229 QMP3429 |
17 (8) |
| 3500 |
240 480 |
21(535) | 29(735) |
QMP3.5229 QMP3.5429 |
17 (8) |
| 4000 |
240 480 |
28(710) | 35(890) |
QMP4235 QMP4435 |
20 (9) |
| 4000 |
240 480 |
28(710) | 41(1040) |
QMP4241 QMP4441 |
23 (10.5) |
| 5000 |
240 480 |
33(840) | 41(1040) |
QMP5241 QMP5441 |
23 (10.5) |
| 5000 |
240 480 |
33(840) | 47(1195) |
QMP5247 QMP5447 |
26 (12) |
| 6000 |
240 480 |
39(990) | 47(1195) |
QMP6247 QMP6447 |
26 (12) |
| 6000 |
240 480 |
39(990) | 52(1320) |
QMP6247 QMP6447 |
29 (13) |
| 8000 |
240 480 |
49(1245) | 59(1500) |
QMP8259 QMP8459 |
31 (14) |
| 10000 |
240 480 |
62(1575) | 71(1800) |
QMP10271 QMP10471 |
34 (15.5) |
Teflon immersion heaters have a .030 wall of Teflon covering a metal element. This heater has a positive metal ground and superior anti corrosive characteristics that make it ideal for immersion into solutions like HCL, HF, Nitric or Chromic Acid.
Quartz immersion heaters and Teflon immersion heaters over the side construction enable easy installation and replacement. Liquid tight terminal covers prevents entry of liquids. Thermostats or high limit thermal fuses are available as options and prevent heater damage due to loss of liquid or low liquid. Titanium immersion heaters are available that are highly corrosive resistant and can withstand harsh chemicals and environments
Features and Benefits
Superior Chemical Resistance: For use in most aqueous acidic plating solutions and pickling tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.
Materials of Construction: Heavy wall quartz sheath with replaceable metal element and polypropylene guards (complete assembly).
Outstanding Performance: Watt densities of 25 watts per square inch (4 w/cm2) ensure long service life.
Corrosion resistant Head: Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit
