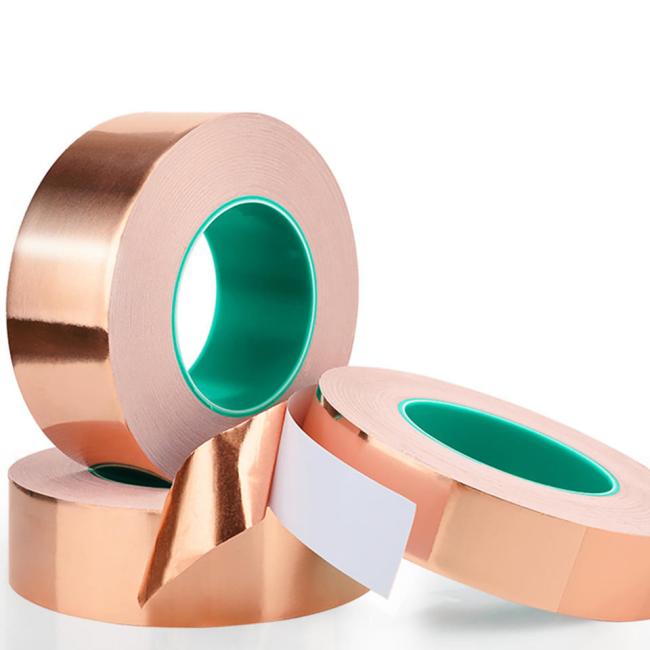

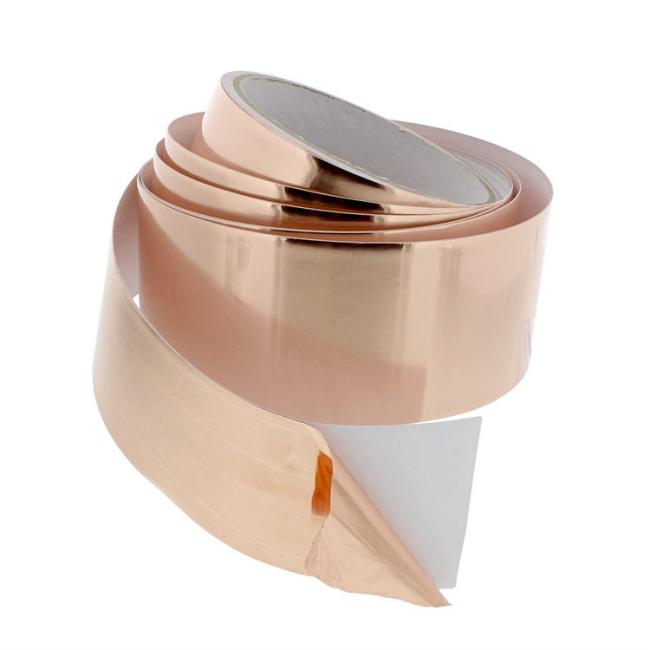

ASTM Electrolytic Copper Foil Battery Copper Foil Electrolytic Graphene Copper Foil

Applications
As one of the basic materials of electronic industry, electrolytic copper foil is mainly used to manufacture printed circuit board (PCB) and lithium-ion battery, and widely used in home appliances, communication, computing (3C), and new energy industry, etc. In recent years, more stringent and newer requirements are proposed for copper foil with the development of 5G technology and lithium battery industry. Very low profile (VLP) copper foil for 5G and ultra-thin copper foil for lithium battery dominate the new development direction of copper foil technology.

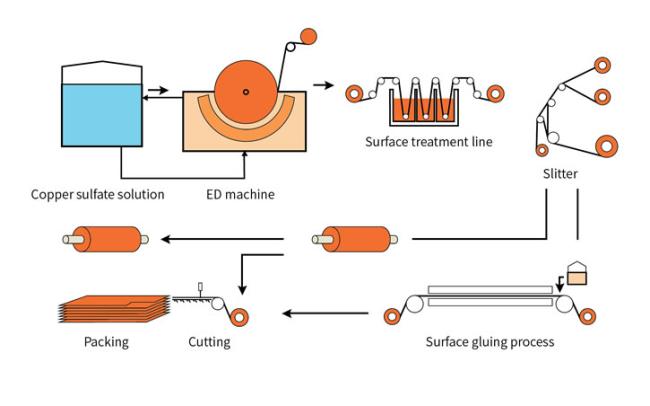

Brief introduction of production process
Although the specifications and properties of electrolytic copper foil vary with copper foil manufacturers, the manufacturing process is basically the same. Generally, all copper foil manufacturers dissolve electrolytic copper or waste copper wire with the same purity as electrolytic copper used as the raw material, in sulfuric acid to produce an aqueous solution of copper sulfate. After that, by taking the metal roller as the cathode, the metallic copper is electrodeposited on the surface of the cathodic roller continuously through electrolytic reaction, and is peeled from the cathodic roller continuously at the same time. This process is known as the foil producing and electrolysis process. Finally, the stripped side (smooth side) from the cathode is the one visible on the surface of the laminated board or PCB, and the reverse side (commonly known as the rough side) is the one that is subject to a series of surface treatment and bonded with resin in the PCB. The double-sided copper foil is formed by controlling the dose of organic additives in electrolyte in the process of producing copper foil for lithium battery.

Electrolysis principle

During electrolysis, the cations in the electrolyte migrate to the cathode, and are reduced after obtaining electrons on the cathode. The anions are oxidized after migrating to the anode and losing electrons. Two electrodes are connected in the copper sulphate solution with direct current. Then, it will be found that copper and hydrogen are separated on the cathode. The reaction is as follows:
Cathode: Cu²⁺ +2e → Cu
2H⁺ +2e → H₂↑
Anode:4OH^- -4e → 2H₂O + O₂↑
　　 　2SO₄^2-+2H₂O -4e → 2H₂SO₄ + O₂↑

After treatment of the cathode surface, the copper layer deposited on the cathode can be peeled off, to obtain a certain thickness of copper sheet. The copper sheet with certain functions is called copper foil.
