CE Approved Two Post Lift Equipment Manual Control For Home Garage

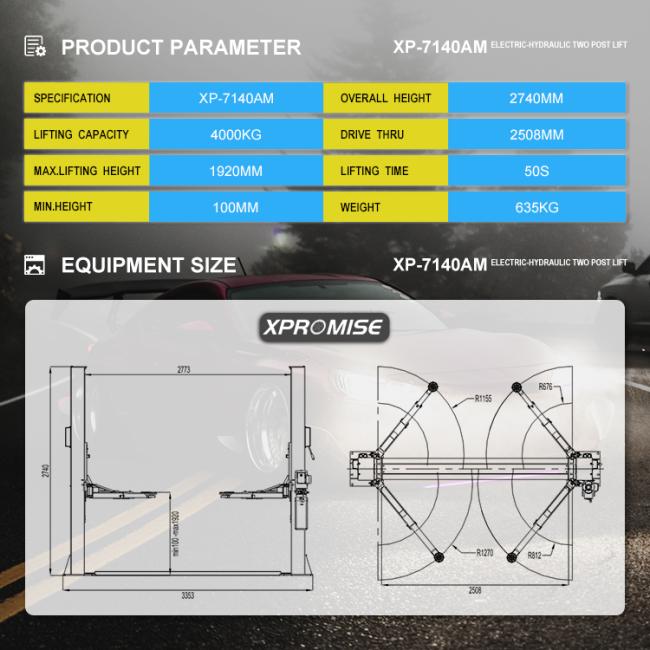

SPECIFICATION

XP-7140AM

Lifting capacity：4000kg

Max.lifting height：1920mm

Min.Height：100mm

Overall height：2740mm

Drive thru：2508mm

Lifting time：50s

Weight：635kg

FEATURES

1.Electric-hydraulic driven lift with chain lifting system

2.Synchronization of cylinders independent from load distribution with mechanical leveling system

3.Mechanical lock with automatic engagement and single point release manually

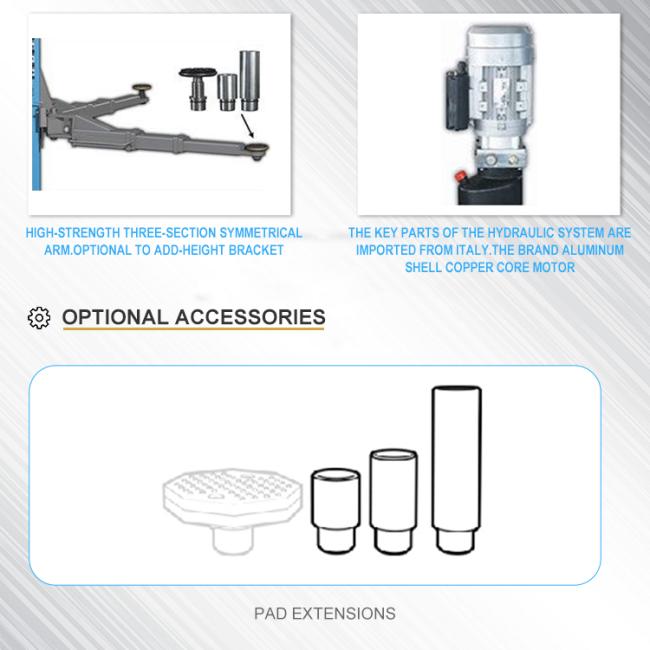

4.Rear arms with 3 stages as standard to accommodate longer or shorter vehicles

5.Automatic arm safety

6.Pressure overload valve is equipped in power unit to protect damaging the lift from being too high pressure

7.Anti-burst valve fitted in cylinder to avoid lift from sudden lowering in case of hose failure
