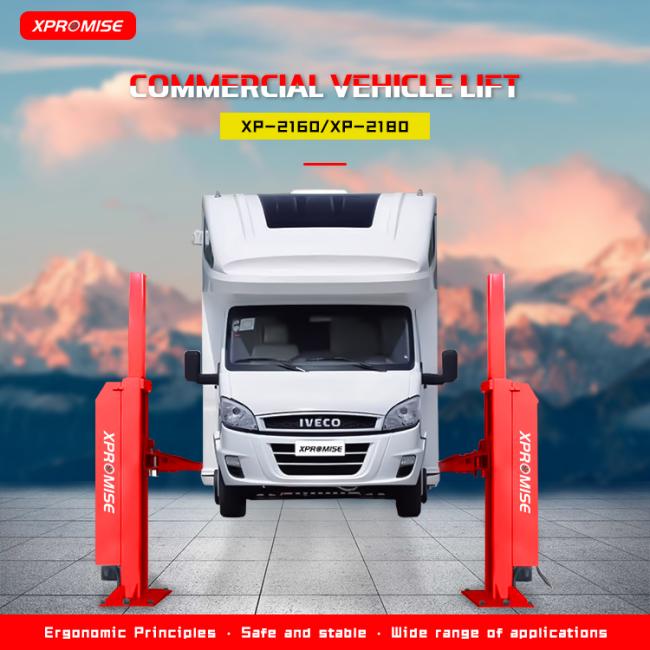

6000kg/8000kg Heavy Duty Truck Lift Fot Sale
TRUCKLIFT

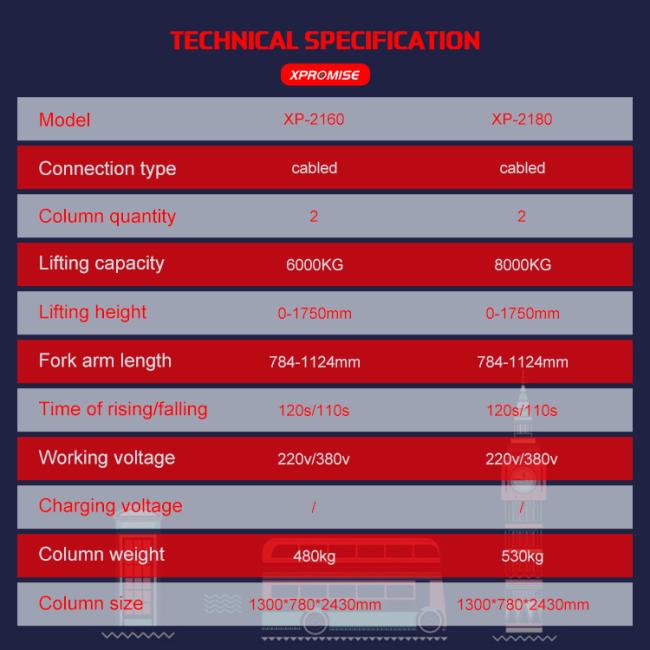

TECHNICAL SPECIFICATION
Model | XP-2160 | XP-2180 |
Connection type | cabled | cabled |
Column quantity | 2 | 2 |
Lifting capacity | 6000kg | 8000kg |
Lifting height | 0-1750mm | 0-1750mm |
Fork arm length | 784-1124mm | 784-1124mm |
Timeof rising/falling | 120s/110s | 120s/110s |
Working voltage | 220 V/380V | 220 V/380V |
Charging voltage | / | / |
Column weight | 480kg | 530kg |
Columnsize | 1300x780x2430 mm | 1300x780x2430 mm |

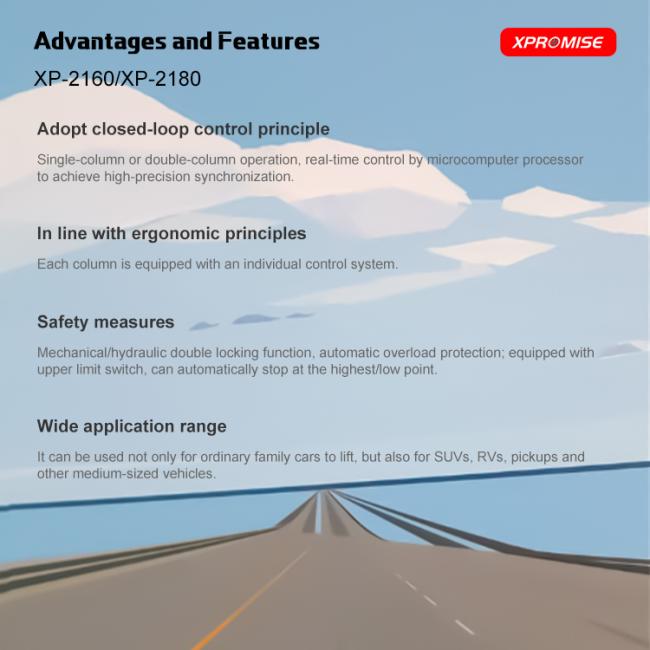

Advantages and features :
1.Closed-loop control principle:
single column or double column operation, microcomputer processor real-time control to achieve high precision synchronization.
2.In line with ergonomics principle:
each column is equipped with a separate control system.
3.Safety measures:
mechanical/hydraulic double locking function, automatic overload protection: equipped with upper limit switch, the highest/low point can automatically stop.
4.Wide range of application:
it can be used for ordinary family car lifting, also can be used for SUV, saloon car, pickup and other medium-sized vehicles lifting.
