High Power Electrolysis Graphite Electrodes HP For Steel Making

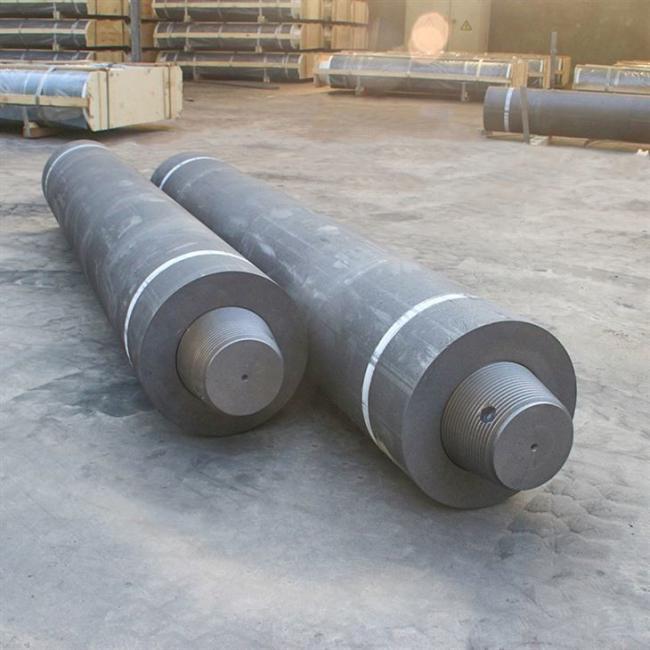

HP Graphite Electrode
HP graphite electrode is mainly made of petroleum coke and needle coke, It is capable of carrying the current density 18-25A/cm2. It is designed for high power electric arc furnace steel-making.
- Product Details
Graphite electrode is mainly made of petroleum coke and needle coke as raw material, coal pitch as binding material, through calcination, batching, kneading, pressing, roasting, graphitization and machining to final product. It can be classified into ordinary power, high power and ultra-high power grade according to its quality index.
Nowadays, the smelting and process of electric arc furnaces have more and more strong requirements for the anti-oxidation performance and thermal shock resistance of graphite electrodes, and the excessive consumption due to quality fluctuations has attracted great attention from direct users. Therefore, the balance and stability of the graphite electrode quality are the most important factors that determine the consumption. With regards to HP Graphite Electrode, please refer to the following properties:
| Properties | Position | Unit | HP |
| 300-800mm | |||
| Specific Resistance | Body | m | 5.8-6.6 |
| Nipple | 4.2-5.0 | ||
| Bending Strength | Body | Mpa | 10.0-13.0 |
| Nipple | 18.0-22.0 | ||
| Young's Modulus | Body | Gpa | 8.0-12.0 |
| Nipple | 14.0-16.0 | ||
| Bulk Density | Body | g/cm3 | 1.62-1.66 |
| Nipple | 1.74-1.80 | ||
| CTE(100-600°C) | Body | ×10 -6/C | 1.6-1.9 |
| Nipple | 1.1-1.4 |
We can provide a full range of graphite electrodes, the length is from 1800mm to 2700mm, and diameter 200mm to 700mm, nipple size from 3TPI to 4TPI according to customer's request.
Pysical Size and Tolerance
unit: mm
| DN | Actual Diameter | Nominal length and tolerance | ||||||||
| Max | Min | 1800 | 2100 | 2400 | 2700 | |||||
| Standard | Short | Standard | Short | Standard | Short | Standard | Short | |||
| 200 | 205 | 200 | ±100 | -275 | ||||||
| 250 | 256 | 251 | ±125 | -275 | ||||||
| 300 | 307 | 302 | ||||||||
| 350 | 357 | 352 | ±125 | -275 | ||||||
| 400 | 409 | 403 | ||||||||
| 450 | 460 | 454 | +200 -150 |
-300 | ||||||
| 500 | 511 | 505 | ||||||||
| 550 | 562 | 556 | ||||||||
| 600 | 613 | 607 | ||||||||
| 650 | 663 | 657 | ||||||||
| 700 | 714 | 708 | ||||||||
| 750 | 765 | 759 | ||||||||
| 800 | 816 | 810 |
Size of 3TPI Nipple and Socket
unit: mm
|
Diameter of Electrode |
Type |
Nipple |
Socket |
Pitch | |||
|
Max.Diameter(A) |
Length(L) |
Effective Diameter(B) |
Depth(S) |
Thread length(T) |
|||
|
550 |
298T3L |
298.45 |
457.20 |
294.24 |
234.60 |
230.60 |
8.467 |
|
500 |
273T3L |
273.05 |
457.20 |
268.84 |
234.60 |
230.60 |
8.467 |
|
500 |
273T3N |
273.05 |
355.60 |
268.84 |
183.80 |
179.80 |
8.467 |
|
400/450 |
241T3L |
241.30 |
355.60 |
237.09 |
183.80 |
179.80 |
8.467 |
|
400/450 |
241T3N |
241.30 |
338.70 |
