EAF 500mm UHP Graphite Electrode LF Needle Coke Graphite Electrode

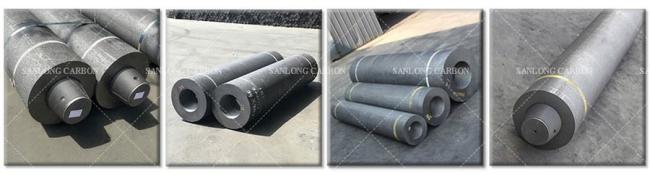

UHP 500mm Graphite Electrode
Origin: China
Application: EAF or LF
Grade: UHP(Ultra High Power)
Nipple Thread: 3TPI or 4TPI
Raw Material: Needle Coke
Delivery term: EXW, FOB, CIF, DAP
- Product Details
Graphite electrode is the only material that can withstand high temperatures up to 3000 degrees Celsius without being deformed and melted. So, they are chosen to make steel in electric arc furnaces (EAF) and ladle furnaces (LF).
How does it work in practice? While electrical current passing through the electrode, the electrode tips create an electric arc which generates extremely high heat and melts the steel into molten iron. High temperature resistance and thermal shock resistance makes it an indispensable material for steelmaking.
More product details as follows for your reference
Typical Properties
Properties | Position | Unit | UHP | HP | RP | |
300-600mm | 650-800mm | 300-800mm | 300-800mm | |||
Specific Resistance | Body | m | 4.8-5.8 | 4.6-5.8 | 5.8-6.6 | 7.8-8.8 |
Nipple | 3.8-4.5 | 3.8-4.5 | 4.2-5.0 | 5.0-6.5 | ||
Bending Strengh | Body | Mpa | 10.0-14.0 | 10.0-14.0 | 10.0-13.0 | 7.0-12.0 |
Nipple | 20.0-26.0 | 20.0-26.0 | 18.0-22.0 | 15.0-20.0 | ||
Young's Modulus | Body | Gpa | 9.0-13.0 | 10.0-14.0 | 8.0-12.0 | 7.0-9.3 |
Nipple | 15.0-18.0 | 15.0-18.0 | 14.0-16.0 | 12.0-14.0 | ||
Bulk Density | Body | g/cm3 | 1.68-1.74 | 1.70-1.74 | 1.62-1.66 | 1.53-1.56 |
Nipple | 1.77-1.82 | 1.78-1.84 | 1.74-1.80 | 1.70-1.74 | ||
CTE(100-600°C) | Body | ×10 -6/C | 1.1-1.4 | 1.1-1.4 | 1.6-1.9 | 2.2-2.6 |
Nipple | 0.9-1.2 | 0.9-1.2 | 1.1-1.4 | 2.0-2.5 | ||
Ash Content | % | 0.3 | 0.3 | 0.3 | 0.5 | |
Dimension&Tolerance
Nominal | Actual Diameter | Nominal length and tolerance(mm) | ||||||||
| Max. | Min. | 1800 | 2100 | 2400 | 2700 | |||||
| Standard | Short | Standard | Short | Standard | Short | Standard | Short | |||
| 200 | 205 | 200 | ±100 | -275 | ||||||
| 250 | 256 | 251 | ±125 | -275 | ||||||
| 300 | 307 | 302 | ||||||||
| 350 | 357 | 352 | ±125 | -275 | ||||||
| 400 | 409 | 403 | ||||||||
| 450 | 460 | 454 | +200-150 | -300 | ||||||
| 500 | 511 | 505 | ||||||||
| 550 | 562 | 556 | ||||||||
| 600 | 613 | 607 | ||||||||
| 650 | 663 | 657 | ||||||||
| 700 | 714 | 708 | ||||||||
| 750 | 765 | 759 | ||||||||
| 800 | 816 | 810 | ||||||||

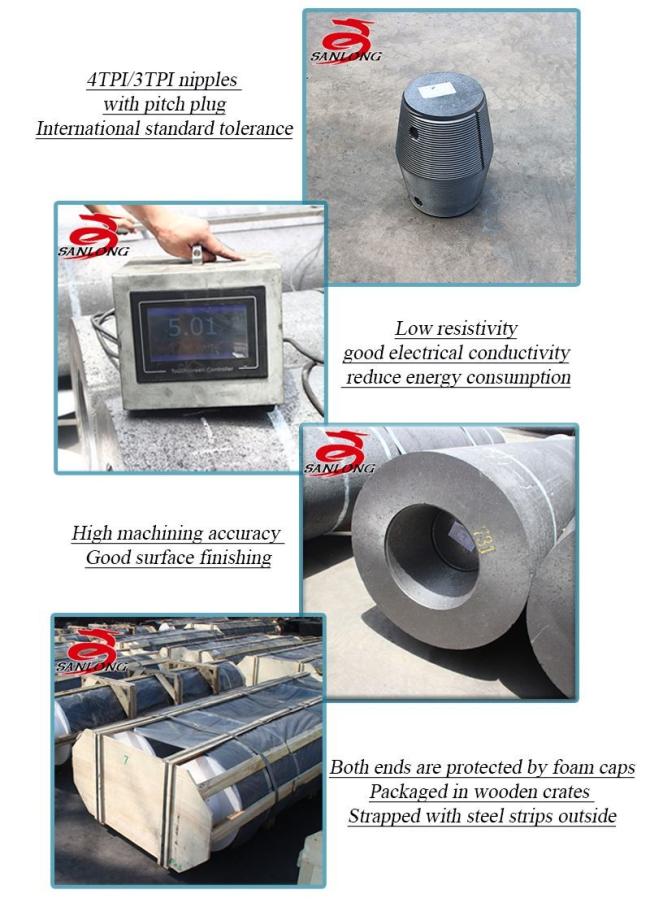

Feature
◆ Low electrical resistance
◆ High conductivity
◆ Strong chemical stability
◆ High resistance to oxidation and thermal shock

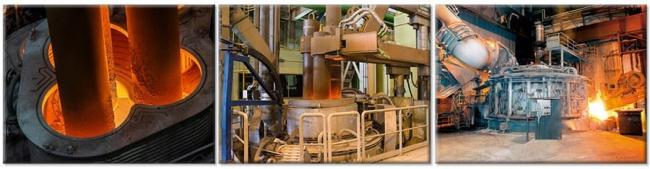

Application
* DC electric arc furnace.
* AC electric arc furnace.
* Submerged arc furnace..
* Ladle furnace.

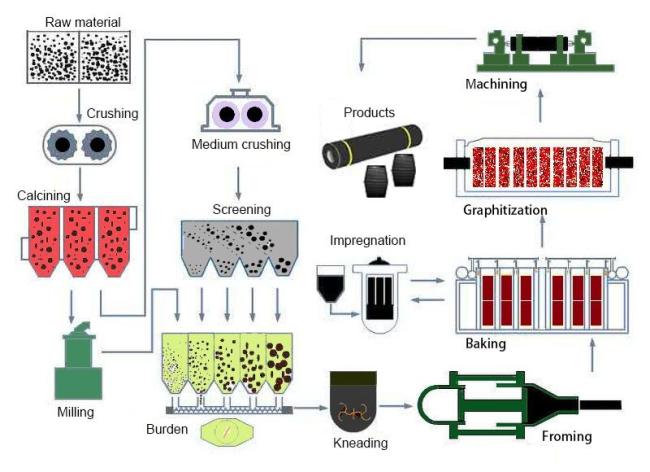

Manufacturing Processing
Package

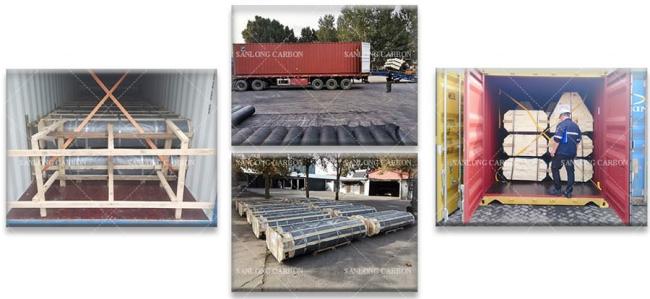

Separated package--- The electrodes and nipples are packaged separately.
Pre-connection package--- The nipple is connected with one end of electrode body in advance, and then both of them are packaged by wooden rafters, strapped outside with steel bands, the threaded nipples and end faces are covered by foamed plastic caps in order to protect them from damage.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
