Single Fiber DWDM MUX DEMUX 20 Channels 20CH 40 Waves LC / UPC 1U Rack
Single Fiber 20CH (40waves) DWDM MUX/ DEMUX, LC/UPC, 1U Rack
- IL<3.5dB , 100GHZ DWDM AAWG Technology
- Multiplexing of 20 Channels over a Single Fiber Bidi Network
- Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
- Passive devices, No Power No Cooling Required
- Support Metro, Regional and Long Haul DWDM Networks
Single Fiber 20CH (40waves) DWDM MUX/ DEMUX, LC/UPC, 1U Rack
The 20ch(40waves) DWDM MUX/ DEMUX is used in pairs,designed by FIBERWDM, in side A, the waves are: RX C19 to C38(1562.23nm~1546.92nm), TX C42 to C61(1543.73nm~1528.77nm); And in side B, the waves are: RXC42 to C61(1543.73nm~1528.77nm), TX C19 to C38(1562.23nm~1546.92nm).
The 20ch DWDM MUX/ DEMUX insertion loss is:＜3.5dB( line loss＜7dB) , and totally passive DWDM device,support 20 channels difference business in one optical fiber for point-to-point transmission , so it is greatly used in which rare optical fiber resource, like in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Panel
20CH DWDM MUX/ DEMUX RX C19 to C38/ TX C42 to C61 Side A
20CH DWDM MUX/ DEMUX RX C42 to C61/ TX C19 to C38 Side B
Line Link

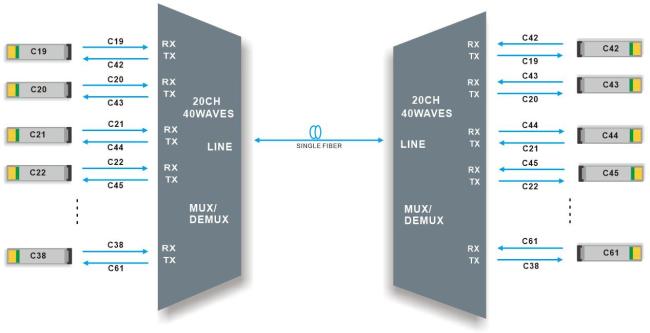

20CH DWDM MUX/ DEMUX Single fiber BIDI transmission
20 Channels DWDM MUX/DEMUX, supports 20 channels difference business in one optical fiber bi-direction point-to-point transmission.
it is greatly used in which rare optical fiber resource, like in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
| Wavelength | 40 waves C19-C38/C42-C61 | Channel Spacing | 100GHz (0.8nm) |
| Channel Passband | ±0.11nm | Technology | AAWG (Gaussian) |
| Insertion Loss | ≤ 3.5dB | Link Loss | ≤7dB |
| Passband Ripple | ≤ 0.5dB | Center Wavelength Accuracy | ±0.05nm |
| Return Loss | ≥ 40dB | Directivity | ≥ 40dB |
| Polarization Mode Dispersion | ≤ 0.1ps | Polarization Dependent Loss | ≤ 0.3dB |
| Channel Isolation | Adjacent ≥ 25dB Non-adjacent ≥30dB |
Temperature |
Operating -5 to 65°C Storage -40 to 85°C |
| Net Weight | 1.5KG | Dimensions (HxWxD) | 44*440*230mm |
Note: Specified with connectors.
Package Information
Single fiber DWDM MUX/ DEMUX 19” Inch 1U Rack
Order Information
| Product No. | Product description |
| DM40-1U01-C1961 | DWDM MUX/ DEMUX 20CH 40 Waves (RX C19-C38/ TX C42-C61) Single fiber, LC/UPC , 1U Rack Side A |
| DD40-1U01-C1961 | DWDM MUX/ DEMUX 20CH 40 Waves (RX C42-C61/ TX C19-C38) Single fiber, LC/UPC , 1U Rack Side B |
Note:We Support Customized Design, please contact us by email.
