16CH C21-C36 16 Channel DWDM Mux Dual Fiber With 1310nm Port
Dual Fiber 16CH C21-C36 DWDM MUX DEMUX
- IL<3.5dB , 100GHZ DWDM MUX DEMUX
- Monitor Port for Troubleshooting, 1310nm Port for Legacy Traffic
- Multiplexing of 16 Channels over a Dark Fiber Network
- Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
- Passive devices, No Power No Cooling Required
- Support Metro, Regional and Long Haul DWDM Networks
Dual Fiber16CH C21-C60 DWDM MUX DEMUX, With 1310nm,Monitor and EXP Port, LC/UPC, 1U Rack
The 16ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength fromC21 to C36(1560.61nm~1548.51nnm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.
The 16ch DWDM with 1310nm port is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.5dB; 1310nm port＜0.8dB).And it conjunct with The DWDM amplifiers and DCM device, the 16ch DWDM transfer system can support a long distance transmission.
Product Panel
-
16CH DWDM MUX DEMUX Dual Fiber
- 1310nm portcan support 1G LX/SX, 10G LR, 40G ER4/LR4, 100GLR/ER4/LR4/ZR4; it forExisting Legacy Traffic.
- Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.
- Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Line Link

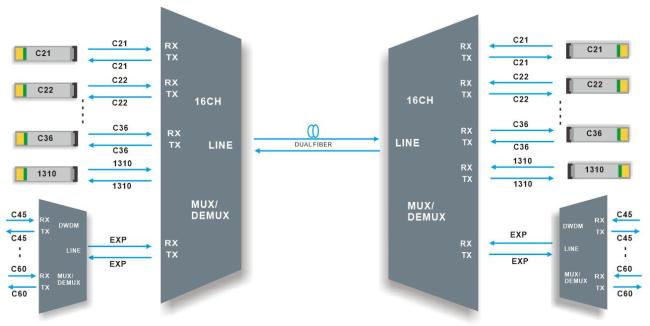

16CH DWDM MUX DEMUX Dual fiber transmission
16 Channels DWDM MUX DEMUX and with 1310nm Port, supports16 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
| Wavelength | 16channels C21-C36 | Channel Spacing | 100GHz (0.8nm) |
| Channel Passband | ±0.11nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤4.0dB | Link Loss | ≤4.8dB |
| 1310nm Port Pass Band Width | 1260nm~1360nm |
Center Wavelength Accuracy |
±0.05nm |
| Insertion Loss @ 1310 port | ≤0.8dB | Insertion Loss @ 1% Mon | ≤ 26dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Polarization Mode Dispersion | ≤ 0.1ps | Polarization Dependent Loss | ≤ 0.3dB |
| Channel Isolation | Adjacent ≥30dB Non-adjacent ≥45dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight | 1.5KG | Dimensions (HxWxD) | 44*440*230mm |
Note: Specified with connectors.
Package Information
DUAL FIBER 16CH DWDM MUX DEMUX 19” Inch 1U Rack
Order Information
| Product No. | Product description |
| DMD16-1U01-C2136-31M | DWDM MUX DEMUX 16CH (C21-C36) With EXP and 1310nm, Monitor Port, Dual fiber, LC/UPC , 1U Rack |
| DMD16-1U01-Cxxxx-31M | DWDM MUX DEMUX 16CH (Cxx-Cxx) With EXP and 1310nm, Monitor Port, Dual fiber, LC/UPC , 1U Rack (Customized) |
Note:We Support Customized Design, please contact us by email.
