100G LR ER ZR MUX DEMUX CWDM Dual Fiber To Single Fiber Converter
100G LR ER ZR Dual Fiber To Single Fiber Converter
Supports 40G/100G LR4, ER4, ZR4, dual fiber to single fiber
Operation wave 1310nm( 40G/100G LWDM 4 or CWDM 4)
TX/RX LC Connector , LINE SC/APC
Passive device, Low Insertion Loss
With the increase of 100G data transmission with large bandwidth, optical fiber resources between data centers are becoming less and less. How to reuse existing optical fibers can save considerable costs for enterprises. FIBERWDM provides 100G dual-port to single-port converter for bidirectional transmission of 100G LR4/ER4 optical modules over one core fiber, enabling multiple 100G services using the existing dual-core fiber.

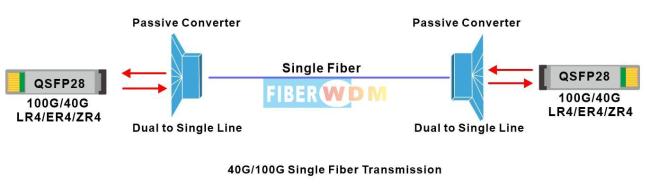

Dual fiber 100G transceiver in single fiber transmission application:
Product Panel
100G Dual fiber to single fiber Converter
Specifications
| Wavelength | 1310nm | Rate | 40G/100G |
| Insertion Loss | ≤ 1dB | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 2.7dB | Isolation | ≥35dB |
| Polarization Dependent Loss | ≤0.1ps | Return Loss | ≥ 45dB |
| TDL (dB) | ≤0.15dB | PMD (ps) | ≤0.055nm |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Power handling | ≤500mW | Fiber Type | SMF-28e |
| Connector | LC/UPC, SC/APC | Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight |
LGX BOX :0.5KG 4Slot 1u Rack: 2.5KG |
Dimensions (HxWxD) |
LGX BOX 214.5*150*20mm 4Slot 1u Rack 44*440*160mm |
Package Information
Order Information
| Product No. | Product description |
| 100G-LGX04-D-S | 100G LR ER ZR Dual fiber to Single fiber Converter,TX/RX Port LC/UPC, Line Port SC/APC, Plug-in LGX Module |
| 1U02-4LGX | 19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm |
Note:We Support Customized Design, please contact us by email.
