18CH Passive CWDM MUX DEMUX Dual Fiber 1270nm - 1610nm With Monitor Port
Dual Fiber 18CH CWDM MUX DEMUX With Monitor Port
- CWDM MUX DEMUX,Multiplexing up to 18 Channels on Fiber Pair
- 1% Monitor Port for Signal Analyzing or Troubleshooting
- Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
- Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
- Applied to Metro, Regional CWDM Networks
Dual Fiber18CH CWDM MUX DEMUX With Monitor Port,LC/UPC, 1U Rack
The 18ch CWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1270nm to 1610nm, and it is passive CWDM device, support 18channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.
Product Panel
18CH CWDM MUX DEMUX Dual Fiber
Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.

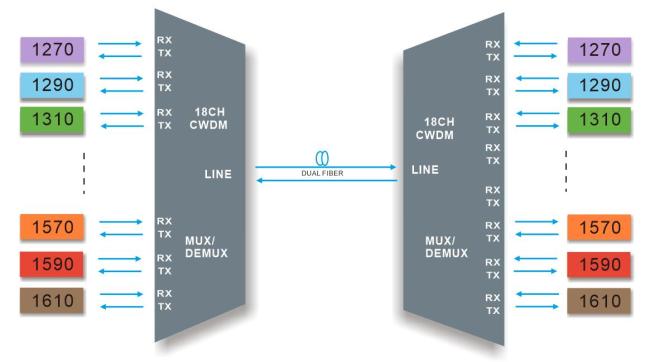

Line Link
18CH CWDM MUX DEMUX Dual fiber transmission
18 Channels CWDM MUX DEMUX,support 18 channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.
Product Specification
| Wavelength | 18 channels 1270-1610nm | Channel Spacing | 20nm |
| Channel Passband | ±6.5nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss |
Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB) |
Link Loss |
Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB) |
| Insertion Loss @ 1% Mon | ≤ 26dB |
Center Wavelength Accuracy |
±0.05nm |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Polarization Mode Dispersion | ≤ 0.1ps | Polarization Dependent Loss | ≤ 0.3dB |
| Channel Isolation | Adjacent ≥30dB Non-adjacent ≥45dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight | 1.5KG | Dimensions (HxWxD) | 44*440*230mm |
Note: Specified with connectors.
Package Information
Order Information
| Product No. | Product description |
| CMD18-1U01-2761M | CWDM MUX DEMUX 18CH 1270nm~1610nm With Monitor Port, Dual fiber, LC/UPC , 1U Rack |
| CMDXX-1U01-XXXX | CWDM MUX DEMUX XXCH 1XX0nm~1XX0nm With Monitor Port, Dual fiber, LC/UPC , 1U Rack (Customized) |
Note:We Support Customized Design, please contact us by email.
