8 Channels CWDM MUX DEMUX Dual Fiber 8CH 1470nm - 1610nm With 1310nm Port
Dual Fiber 8CH 1470nm~1610nm CWDM MUX DEMUX With 1310nm And Monitor Port
- CWDM MUX DEMUX,Multiplexing up to 8 Channels on Dual Fiber
- Monitor Port for Troubleshooting, 1310nm Port for Legacy Traffic
- Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
- Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
- Applied to Metro, Regional CWDM Networks
Dual Fiber8CH 1470nm~1610nm CWDM MUX DEMUX With 1310nm and Monitor Port,LC/UPC, 1U Rack
The 8ch CWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1470nm to 1610nm and with 1310nm port, and it is passive CWDM device, support 9 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.
Product Panel
8CH CWDM MUX DEMUX Dual Fiber
- 1310nm portcan support 1G LX/SX, 10G LR, 40G ER4/LR4, 100GLR/ER4/LR4/ZR4; it forexisting legacy traffic.
- Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.
Line Link
8CH CWDM MUX DEMUX Dual fiber transmission
8 Channels CWDM MUX DEMUX,support 8 channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.
Product Specification
| Wavelength | 8 channels 1470-1610nm | Channel Spacing | 20nm |
| Channel Passband | ±6.5nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 2.7dB | Link Loss | ≤3.0dB |
| 1310nm Port Pass Band Width | 1260nm~1360nm | Insertion Loss @ 1310 port | ≤0.8dB |
| Insertion Loss @ 1% Mon | ≤ 26dB | Center Wavelength Accuracy | ±0.05nm |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Polarization Mode Dispersion | ≤ 0.1ps | Polarization Dependent Loss | ≤ 0.3dB |
| Channel Isolation | Adjacent ≥30dB Non-adjacent ≥45dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight | 1.5KG | Dimensions (HxWxD) | 44*440*230mm |
Note: Specified with connectors.

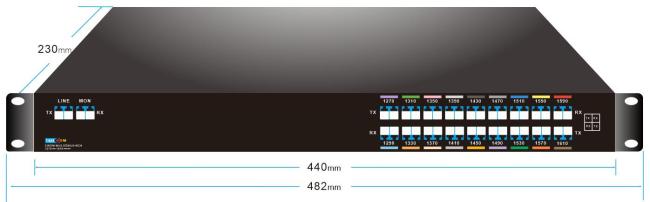

Package Information
8CH CWDM MUX DEMUX 19” Inch 1U Rack
Order Information
| Product No. | Product description |
| CMD8-1U01-4761-31M | CWDM MUX DEMUX 8CH 1470nm~1610nm With 1310nm and Monitor Port, Dual fiber, LC/UPC , 1U Rack |
| CMD8-1U01-XXXX | CWDM MUX DEMUX 8CH 1XX0nm~1XX0nm , Dual fiber, LC/UPC , 1U Rack (Customized) |
Note:We Support Customized Design, please contact us by email.
