1310nm - 1610nm CWDM Single Fiber Mux DEMUX 8CH 16 Waves With Monitor Port
Singhle Fiber 8CH(16 Waves) CWDM MUX DEMUX With Monitor Port
- CWDM MUX DEMUX,Multiplexing up to 8 ch for single fiber BIDI transmission
- 1% Monitor Port for Signal Analyzing or Troubleshooting
- Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
- Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
- Applied to Metro, Regional CWDM Networks
Single Fiber 8 Channels (16waves) 1310-1610nm CWDM MUX DEMUX With Monitor Port,LC/UPC,Plug-in LGX Box and 2slot 1U Rack
The single fiber 8 channels(16 waves) CWDM MUX DEMUX is designed by FIBERWDM, A side’s waves are : RX 1310nm to 1450nm/ TX 1470nm to 1610nm, and B side’s waves are:RX 1470nm to 1610nm/ TX 1310nm to 1450nm; it ispassive CWDM device and plug-in LGX box, can plug in 2slot 1u rack, support 8 channels difference business inone optical fiber for bi-direction point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

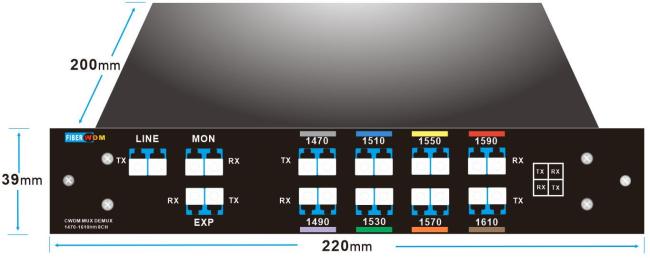

Product Panel

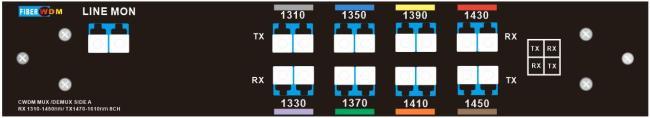

Side A Single Fiber 8CH CWDM MUX DEMUX

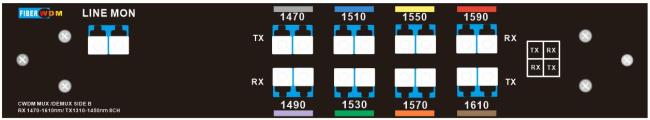

Side B Single Fiber 8CH CWDM MUX/ DEMUX
Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.
Line Link

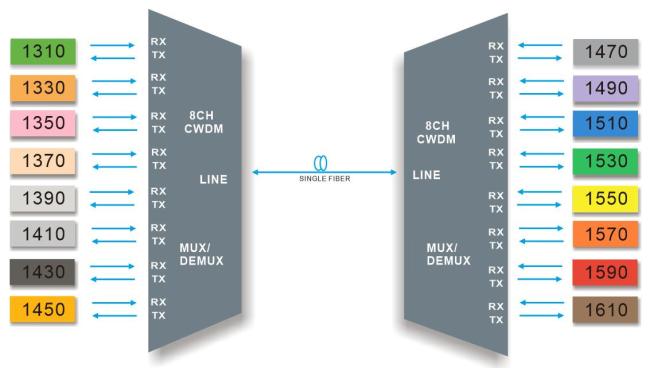

8CH CWDM MUX/ DEMUX Single fiber transmission
8Channels (16 waves) CWDM MUX DEMUX,should be used in pairs, which transmits and receives different wavelengths, support 8channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.
Product Specification
| Wavelength | 8ch (16waves) 1310-1610nm | Channel Spacing | 20nm |
| Channel Passband | ±6.5nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 4.8dB | Link Loss | ≤ 5.6dB |
| Insertion Loss @ 1% Mon | ≤ 26dB | Center Wavelength Accuracy | ±0.05nm |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Polarization Mode Dispersion | ≤ 0.1ps | Polarization Dependent Loss | ≤ 0.3dB |
| Channel Isolation | Adjacent ≥30dB Non-adjacent ≥45dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight |
LGX BOX 0.5KG 2Slot 1u Rack 1.5KG |
Dimensions (HxWxD) |
LGX BOX190*200*39mm 2Slot 1u Rack 44*440*230mm |
Note: Specified with connectors.
Package Information
Plug-in LGX Box

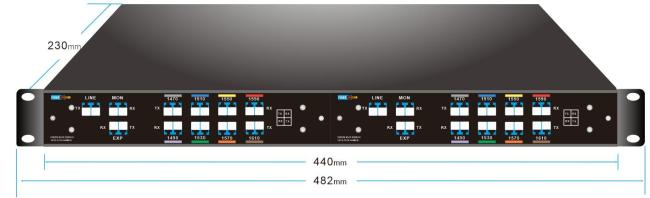

2-Slot 1U Rack for LGX BOX
Order Information
| Product No. | Product description |
| CM16-1U01-3161M | CWDM MUX /DEMUX 8CH 16waves(RX1310nm~1450nm/ TX1450nm~1610nm ) With Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box |
| CD16-1U01-3161M | CWDM MUX /DEMUX 8CH 16waves(RX1470nm~1610nm/ TX1310nm~1450nm ) With Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box |
| 1U02-2LGX | 19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note:We Support Customized Design, please contact us by email.
