8 Channel CWDM Mux Demux Module 1470nm - 1610nm Dual Fiber Plug In LGX Box
Dual Fiber 8CH 1470-1610nm CWDM MUX DEMUX With EXP , LC/UPC, Plug-In LGX Box
- CWDM MUX DEMUX,Multiplexing up to 8 Channels on Fiber Pair
- Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
- Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
- Applied to Metro, Regional CWDM Networks

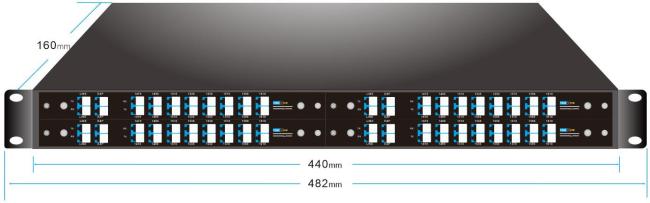

Dual Fiber 8CH 1470-1610nm CWDM MUX DEMUX With EXP ,LC/UPC,Plug-in LGX Box and 4slot 1U Rack
The 8ch CWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1470nm to 1610nm, and it is passive CWDM and plug-in LGX box, can plug in 4slot 1u rack, support 8 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

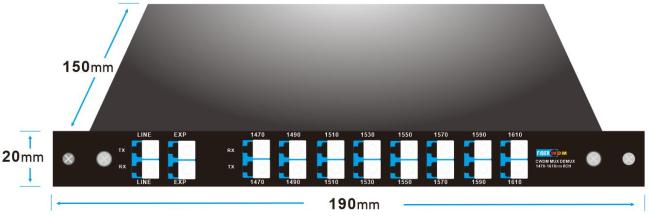

Product Panel
8CH CWDM MUX DEMUX Dual Fiber
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another CWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

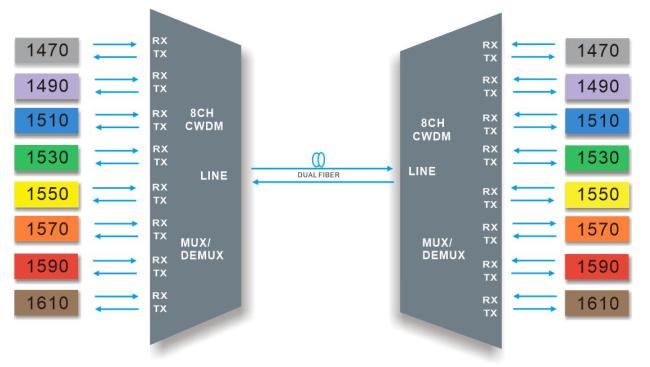

Line Link
8CH CWDM MUX DEMUX Dual fiber transmission
8 Channels CWDM MUX DEMUX,support 8 channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.
Product Specification
| Wavelength | 8 channels 1470-1610nm | Channel Spacing | 20nm |
| Channel Passband | ±6.5nm | Technology | TFF (Thin Film Filter) |
| Insertion Loss | Regular :≤ 2.4dB | Link Loss | ≤ 2.4dB |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Polarization Mode Dispersion | ≤ 0.1ps | Polarization Dependent Loss | ≤ 0.3dB |
| Channel Isolation | Adjacent ≥30dB Non-adjacent ≥45dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight |
LGX BOX 0.5KG 4Slot 1u Rack 1.5KG |
Dimensions (HxWxD) |
LGX BOX 190*150*20mm 2Slot 1u Rack 44*440*160mm |
Note: Specified with connectors.
Package Information
Plug-in LGX Box
Order Information
| Product No. | Product description |
| CMD8-1U01-4761M | CWDM MUX DEMUX 8CH (1470nm~1610nm) With EXP And Monitor Port, Dual fiber, LC/UPC , Plug-in LGX Box |
| CMD8-1U01-xxxxM | CWDM MUX DEMUX 8CH (xxxx-xxxx) With EXP And Monitor Port, Dual fiber, LC/UPC , Plug-in LGX Box (Customized) |
| 1U02-2LGX | 19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note:We Support Customized Design, please contact us by email.
