High Density CWDM MUX DEMUX Dual Fiber 8CH 1270nm - 1450nm 8 Channels
Dual Fiber 8CH 1270-1450nm(Skip 1390/1410nm) CWDM MUX DEMUX With Monitor And EXP , LC/UPC, Plug-In LGX Box
- CWDM MUX DEMUX,Multiplexing up to 8 Channels on Fiber Pair
- Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
- Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
- Applied to Metro, Regional CWDM Networks
8 Channels 1270-1450nm (Skip 1390, 1410nm), with Monitor and Expansion Port, LC/UPC, Dual Fiber, High Density CWDM Mux Demux, LGX Box Plug-in Module
The 8ch CWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1270nm to 1450nm (Skip 1390/1410nm), the package ishighdensity CWDM Mux Demux,dual fiber,LC/UPC connectors, LGX box Plug-in Module, can plug in 4slot 1u rack.
It support 8channels difference business in two optical fiber for point-to-point transmission.So great worked in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.
Product Panel
100G Dual fiber to single fiber Converter
Specifications
| Wavelength | 1310nm | Rate | 40G/100G |
| Insertion Loss | ≤ 1dB | Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤ 2.7dB | Isolation | ≥35dB |
| Polarization Dependent Loss | ≤0.1ps | Return Loss | ≥ 45dB |
| TDL (dB) | ≤0.15dB | PMD (ps) | ≤0.055nm |
| Return Loss | ≥ 45dB | Directivity | ≥ 45dB |
| Power handling | ≤500mW | Fiber Type | SMF-28e |
| Connector | LC/UPC, SC/APC | Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight |
LGX BOX :0.5KG 4Slot 1u Rack: 2.5KG |

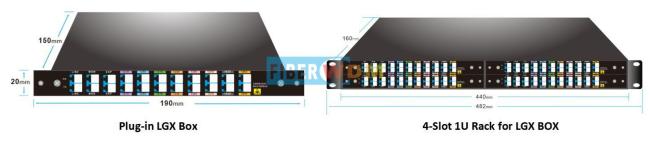

Dimensions (HxWxD) |
LGX BOX 214.5*150*20mm 4Slot 1u Rack 44*440*160mm |
Package Information
Order Information
| Product No. | Product description |
| CMD8-LGX01-27S45M | CWDM MUX DEMUX 8CH (1270nm~1450nm)(Skip 1390/1410nm)with Monitor and EXP Port, Dual fiber, LC/UPC , Plug-in LGX Box |
| 1U02-4LGX | 19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm |
Note:We Support Customized Design, please contact us by email.
