FTTH WDM Passive Components TX 1540-1560 RX 1260-1500 1575-1650 FWDM Module
FTTH FWDM TX 1540-1560 RX 1260-1500&1575-1650 FWDM Component
- Single channel 3 port FWDM filter, works in FTTH/FTTx optical network
- PON CATV Mux
- Low insertion loss
- High channel isolation
- Low polarization dependent loss
- Exceptional reliability and stability
FTTH FWDM TX1540-1560 RX 1260-1500&1575-1650 FWDM Component CATV,GEPON,XGS-PON,NG-PON2
FIBERWDM Provide Passive FWDM Filter TX1540-1560 RX 1260-1500&1575-1650 is low loss and reliable performances. It works in FTTH/FTTX, in PON (Support GEPON,XGS-PON,NG-PON2) system works on 1260-1500&1575-1650nm,and CATV signal is delivered over same fiber using 1550±10nm.
Product
RACK Panel
1U Rack Support 24* CATV + PON
Specifications
| Wavelength | TX1550±10nm RX1260-1500&1575-1650nm | Technology | TFF (Thin Film Filter) |
| Passband | 1540~1560nm | Reflection | 1260~1500&1575~1650 |
| Passband ripple | ≤0.30dB | IL @ Passband | ≤0.60dB |
| Reflection band ripple | ≤0.20dB | IL @Reflection | ≤0.40dB |
| Transmission isolation (adj channel) | ≥30dB | Transmission isolation (non-adj channel) | ≥50dB |
| Reflection isolation | ≥15dB | Polarization dependent loss | ≤0.1dB |
| Polarization mode dispersion | ≤0.2ps | Thermal Stability | ≤0.005N |
| Directivity | ≥50dB | Return loss | ≥45dB |
| Optical power handling | ≤500mW | Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Fiber type | SMF-28e | Package dimension |
Steel∮5.5 xL34mm ABS 90*20*10mm 1U 440*230*44mm |
Note. 1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.
2)PMD and chromatic dispersion values are guaranteed by design.
3) Specifications are subject to change without notice

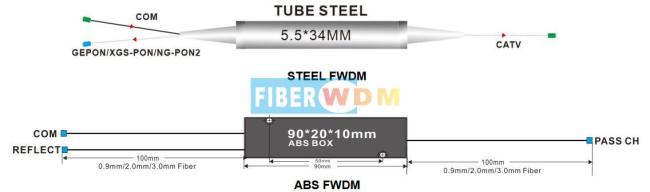

Component Dimensions drawing(mm)
Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.

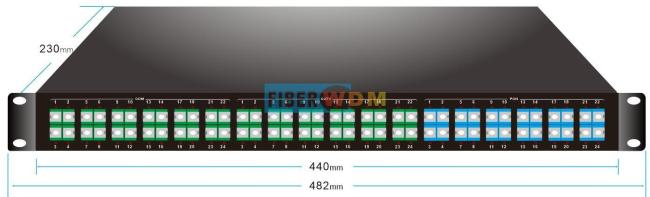

1U RackDimensions drawing(mm)
Ordering information
1) 1 channelComponent
| RD-FW | - Package | -Connector Type | U/A | -5456 | -Fiber Type | -Fiber Length |
| S: Steel | 0: No connector | U: UPC | TX:1540~1560nm | 9: 0.9mm Fiber | 005: 0.5+/-0.1m | |
| B: ABS BOX | 1: LC | A: APC | RX:1260~1500&1575~1650 | 20:2.0mm | 01: 1.0+/-0.1m | |
| 2: SC | 30:2.0mm | others | ||||
| 3: FC | Others | |||||
| 4: Others |
2) N channel 1U Rack
| RD-FW | - xx | - Package | -Connector Type | U/A | -5456 |
| 08: 8 channel | 1U: 1U rack | 1: LC | U: UPC | TX:1540~1560nm/ RX:1260~1500&1575~1650 | |
| 16: 16channel | B: ABS BOX | 2: SC | A: APC | ||
| 24: 24channel | 3: FC | Others | |||
| 4: Others | 4: Others |
