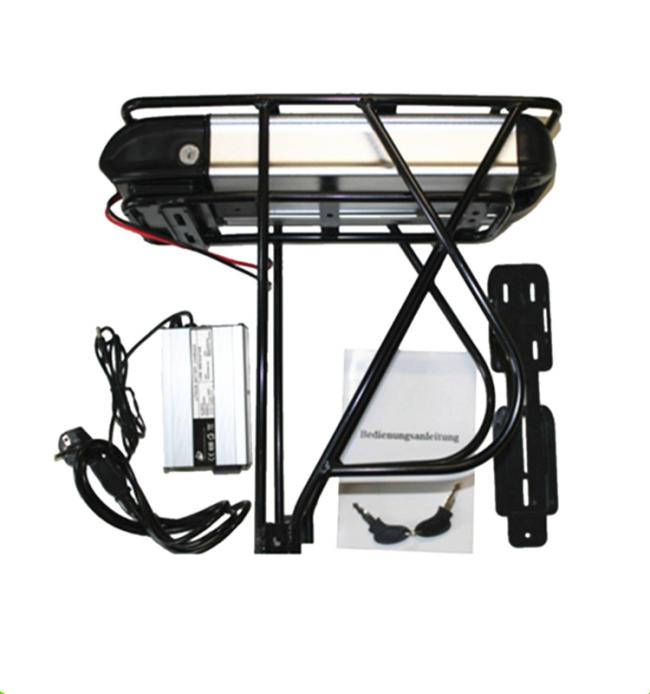

Rear Rack Electric Bicycle Battery Pack 14s7p 22.4Ah 52V Lithium Ion Battery

Price Negotiable
Price: Negotiation
MOQ: Negotiation
Delivery Time: Negotiable
Brand: Vodno
Product Description

Rear Rack Electric Bicycle 52v 22.4Ah 14s7p LG Cell With BMS

18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.



Overview

VODNO innovative technology built to your product standards. We approach every OEM partnership with openness. so we can understand your needs and you can understand our competencies , standards and commitment to delivery From engineering and design to development teams that prioritize performance and customer experience , trust VODNO to be your single source partner to deliver the custom battery solution that achieves your vision . When you're looking for a trustworthy partner tobuild your custom product , let our experts reduce development risk and bring a high-qualityproduct to market faster for you.



We promise only GRADE A cells for your battery pack, How to differentiate

Grade A cell from B and C, pls refer to following.

Grade A: Cells perform to manufacturer specifications with long life cycle

Grade B: Cells under-perform or have other defects with short life cycle

Grade C: Cells are used, repackaged, salvaged, or damaged

Rear rack Model Voltage Configuration Battery capacity
  36v 10S 22Ah-38Ah
  48v 13S 18Ah-31Ah
  52v 14S 16Ah-28Ah





Specifications



Model VDO-Li5217 (LG 3200mAh)
General Characteristics
Nominal voltage 52V (14S7P)
Nominal capacity@0.2C 22.4Ah
Nominal energy 1164.8Wh
Internal Resistance 240≦mΩ
Life cycle >800 Cycles @0.2C Charging /Discharging at 90%DOD
Standard Charging
Charging voltage 58.8+/-0.2V
Charging Mode(CC/CV) At 0℃~45℃temperature, charged to 58.8V at constant current 0.5C3A,and then at constant voltage 58.8V until the current drops to 0.5C3A
Charging Current 5A
Max.Charging Current 10A
Standard Discharging
Discharging Current 10A
Max.Continuous Current 15A
Max.Pulse Current 30A(<3S)
Discharging cut-off Voltage 39.2V
Operating conditions
Operating temperature Charge 0℃~60℃
Discharge -20℃~60℃
Storage temperature -10℃~45℃
Water dust resistance N/A
Structure
Casing Rear rack
Dimension N/A
Approx.Weight ≤5.5kgs
Terminal N/A
