48v 60ah Lifepo4 Battery Pack Cathode Lithium Ion Customized Size
48v 60Ah LiFePO4 Cathode Battery Pack In Customized Size
LIFEPO4 is the more efficient technology batteries , knocking out traditional lead acid batteries . VODNO provides a complete line of 12 ,24 and 48 volt batteries for use inRVS , Boats , Evs and off-grid applications and much more.
Overview
Battery System
Our 48v battery system supports solar energy storage of both commercial and industrial purposes,The system is built from intergration of Basic
storage of Basic storage battery in parallel connection with BMS (Battery Management System)for protection and communication.
Standard lineup
1. Operating voltage 48v and 51.2V
2. Typical Basic Battery 48V 100Ah while more option from 48v 10Ah/20Ah/30Ah/50Ah/70Ah
3. Optional capacity in cabinet size 200Ah~600Ah
Features
1. Multiple of basic storage battery of nominal voltage 48v in parallel connection
2. Each basic storage battery with built in intelligent BMS effectively prevent battery overcharge,over-discharge,overcurrent and over-temperaure.
3. Standard 19 inch rack-mount durable enclosure for plug & play replacement.
4. Equipped with RS485/RS232 communication
5. Standard BMS with options for charging current limit in parallel connection (programmable ON/OFF)
6. Efficient & long-lasting service life
Custom manufacturing
1. Custom battery system is available through intergration of more basic storage battery.
2. Battery systems of different operating voltage,capacity etc.
Specifications
| Model | VDO4860 | |
| General Characteristics | ||
| Nominal voltage | 51.2V(16S) | |
| Nominal capacity@0.2C | 60Ah | |
| Mini. capacity@0.2C | 58Ah | |
| Nominal energy | 3.07KWh | |
| Dimensions(W*D*H) | 360*290*180mm (customzied) | |
| Approx. weight(exclude cabinet) | 24.5Kgs | |
| Battery connection | 16S10P | |
| Electrical Characteristics | ||
| Operating voltage range | 51.2V | |
| Recommended charging voltage | 58.4V | |
| Max. charging current | 40A | |
| Max.continuous discharge current | 40A | |
| Max.peak discharge current | 80A,<3S | |
| Discharging cut-off voltage | 40v | |
| Faraday charging efficiency | ≥98% | |
| Energy charging efficiency | ≥92% | |
| Operating conditions | ||
| Operating temperature | Charge | 0℃～55℃ |
| Discharge | －20℃～60℃ | |
| Storage temperature | 0℃～55℃ | |
| Storage duration | 12Months @20℃~25℃ | |
| Water dust resistance | Plastic shrinking packing | |
| Lifecycle times | 2000 at 90% DOD | |
Application
The energy storage battery is applicable for commercial or residential purposes.

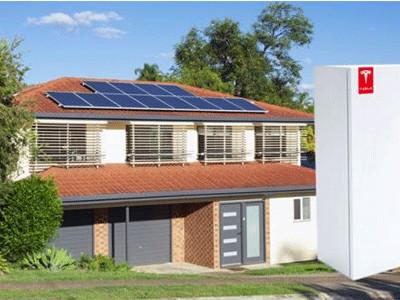

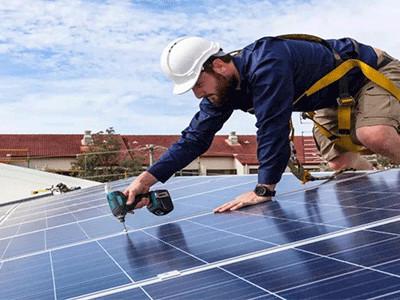

1. Solar Energy Storage
2. Solar Street lighting
3. Light Electric Vehicle
4. E-bike/E-Rickshaw
5. Golf Cart
6. UPS
