10Ah - 20Ah 36V Lithium Battery Pack 10S Silverfish Ebike Battery
36v 10Ah Silver Fish Electric Bicycle Battery Pack
18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.
Overview
Quality + Safety = VODNO e-bike battery
1, We are use high rate 18650 battery cell in auto level quality to make a amazing e-bike battery pack, which has reasonable internal layout in series and parallel, with automatic welding technology using formed pure nickel sheet welding.
2, Battery pack’s performance and safety depends on cells, BMS assure battery pack working in normal situation and long life span. We use high top quality BMS to protect batteries are in normal situation, extend life span, reduce the frequency of battery pack accidents.
3, We ensure that the battery pack is 100% test before shipment, inspect the internal welding spot, We ensure that each battery pack is qualified when they are arrives at the customer'.
4, We provide 1 year warranty. Our team experts are able to help you solve problem you had, we will give priority to processing.
5, CB UN KC certification are available.
| Sliver Fish | Voltage | Configuration | Battery capacity |
| 24v | 7S | 14Ah-24Ah | |
| 36v | 10S | 10Ah-20Ah | |
| 48v | 13S | 8Ah-17Ah |
Specifications
| Model | VDO-Li3612 ( China brands ) | |
| General Characteristics | ||
| Nominal voltage | 36V (10S5P) | |
| Nominal capacity@0.2C | 12.5Ah | |
| Nominal energy | 450Wh | |
| Internal Resistance | 200≦mΩ | |
| Life cycle | >600 Cycles @0.2C Charging /Discharging at 90%DOD | |
| Standard Charging | ||
| Charging voltage | 42.0+/-0.2V | |
| Charging Mode(CC/CV) | At 0℃~45℃temperature, charged to 42V at constant current 0.5C3A,and then at constant voltage 42V until the current drops to 0.5C3A | |
| Charging Current | 3A | |
| Max.Charging Current | 5A | |
| Standard Discharging | ||
| Discharging Current | 10A | |
| Max.Continuous Current | 15A | |
| Max.Pulse Current | 30A(<3S) | |
| Discharging cut-off Voltage | 28V | |
| Operating conditions | ||
| Operating temperature | Charge | 0℃～60℃ |
| Discharge | －20℃～60℃ | |
| Storage temperature | -10℃～45℃ | |
| Water dust resistance | N/A | |
| Structure | ||
| Casing | Hailong A | |
| Dimension | N/A | |
| Approx.Weight | ≤4.25kgs | |

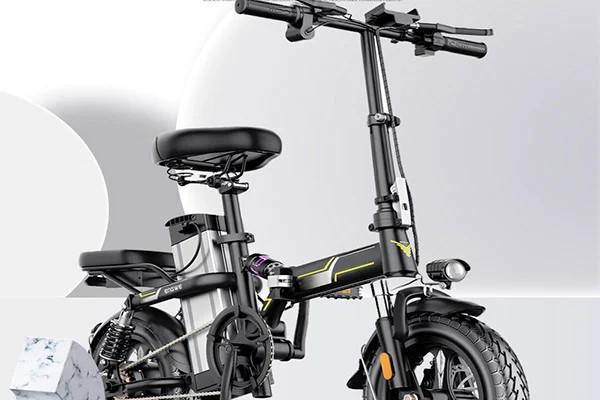

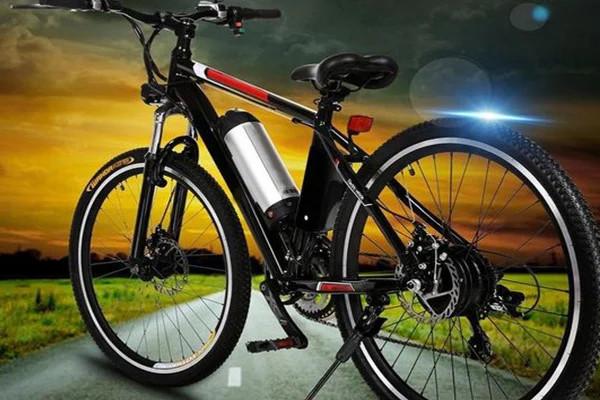

Application
