Silver Fish E Bike 24v 12ah Lithium Ion Battery Pack lighterweight With BMS
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
Negotiable
Brand:
Vodno
Product Description
Silver Fish Lithium Ion 24v 12Ah E-bike Battery Pack With Good Quality BMS
Li ion battery is much popular in the electric bicycle industrial, Its brings us friendly environment with lot of fun world. Li ion battery pack for e-bike is lighter weight, size smaller and high energy power, It is best choice up to now.
Overview
Quality + Safety = VODNO e-bike battery
E-bike lithium battery packs are available in several chemistries, You could make a decision according to your market.
Lithium cobalt oxide provides the greatest energy density
Lithium manganese offers greater safety with lower energy density than lithium cobalt oxide
Lithium iron phosphate provides high discharge rate capabilities, as well as long cycle and calendar life
Specifications
| Model | VDO-Li2412 (China brand cell) | |||
| General Characteristics | ||||
| Nominal voltage | 24V (7S5P) | |||
| Nominal capacity@0.2C | 12.5Ah | |||
| Nominal energy | 323Wh | |||
| Internal Resistance | 240≦mΩ | |||
| Life cycle | >800 Cycles @0.2C Charging /Discharging at 90%DOD | |||
| Standard Charging | ||||
| Charging voltage | 29.4+/-0.2V | |||
| Charging Mode(CC/CV) | At 0℃~45℃temperature, charged to 29.4V at constant current 0.5C3A,and then at constant voltage 29.4V until the current drops to 0.5C3A | |||
| Charging Current | 3A | |||
| Max.Charging Current | 6A | |||
| Standard Discharging | ||||
| Discharging Current | 6A | |||
| Max.Continuous Current | 12A | |||
| Max.Pulse Current | 24A(<3S) | |||
| Discharging cut-off Voltage | 20+/-0.2V | |||
| Operating conditions | ||||
| Operating temperature | Charge | 0℃～60℃ | 0℃～60℃ | 0℃～60℃ |
| Discharge | －20℃～60℃ | －20℃～60℃ | －20℃～60℃ | |
| Storage temperature | -10℃～45℃ | -10℃～45℃ | -10℃～45℃ | |
| Water dust resistance | N/A | N/A | N/A | |
| Structure | ||||
| Casing | Silver fish | |||
| Dimension | 305*75*110mm | |||
| Approx.Weight | ≤2.5kgs | |||
| Terminal | N/A | |||

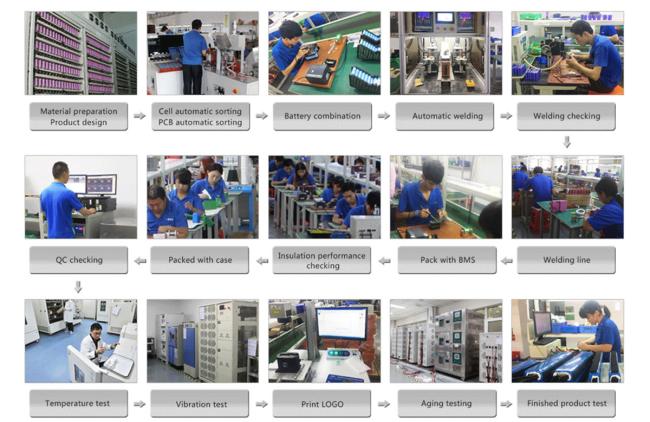

Workflow
