3m - 6m Gasoline LPG Forklift Customized With Japanese Engine 3 Ton
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
45 working days
Brand:
Huahe
Product Description

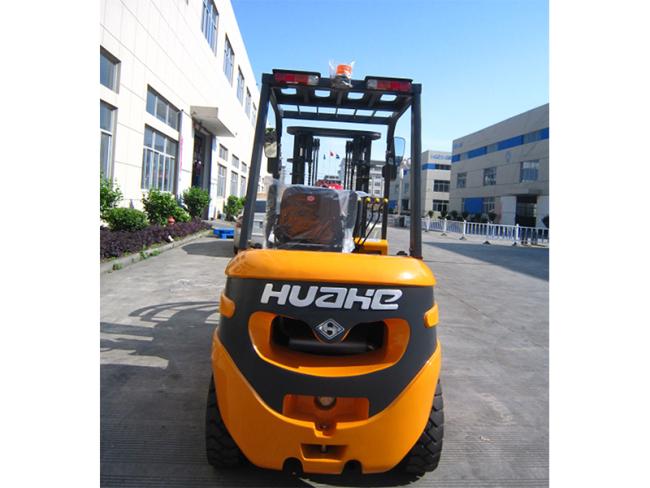

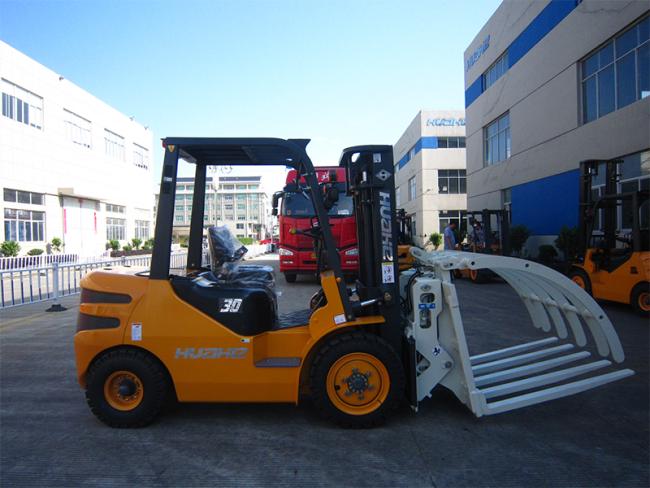

3Ton Gasoline Forklift with Paper Clamp Japanese NISSAN K25 Gasoline Engine
DESCRIPTION: 3.0Ton Gasoline Forklift with Paper Clamp
MODEL: HH30Z-K5-G
SPECIFICATION: 1, 3.0Ton rated capacity, Load center 500MM
2, With Japanese NISSAN K25 Gasoline Engine
3, Automatic transmission, 3meter standard lift height, Duplex mast, with paper clamp
4, Strobe light, Seat with safety belt and handles, CHAOYANG pneumatic tires
5, Dimension length*width*height 2790*1210*2150MM , Self-weight 4900KGS
| 1 | Model | UNIT | HH30Z-K5-G | ||
| 2 | Power type | Gasoline/LPG | |||
| 3 | Rated capacity | kg | 3000 | ||
| 4 | Load center | mm | 500 | ||
| 5 | Lift height | mm | 3000 | ||
| 6 | Free lift height | mm | 130 | ||
| 7 | Fork size(L*W*T) | mm | / | ||
| 8 | Fork outside spread(Min./Max.) | mm | 300/1200 | ||
| 9 | Mast tilt range(F/R) | deg | 6/12 | ||
| 10 | Front overhang | mm | 490 | ||
| 11 | Overall dimensions | Length to face of fork | Without of fork | mm | 2790 |
| 12 | With fork | mm | / | ||
| 13 | Wheel width | mm | 1210 | ||
| 14 | Mast lowered height | mm | 2080 | ||
| 15 | Mast extended height | mm | 4110 | ||
| 16 | Overhead guard height | mm | 2150 | ||
| 17 | Turning radius | mm | 2460 | ||
| 18 | Min. right angle aisle width | km/h | 2105 | ||
| 19 | Travel speed (unload/full load) | mm/s | 20/18.5 | ||
| 20 | Lift speed (unload/ full load) | mm/s | 480 | ||
| 21 | Max. gradeability | % | 20 | ||
| 22 | Tires | Front | 28×9-15-12PR | ||
| 23 | Rear | 6.50-10-10PR | |||
| 24 | Tread | Front | mm | 1000 | |
| 25 | Rear | mm | 970 | ||
| 26 | Wheelbase | mm | 1700 | ||
| 27 | Min. ground clearance (unload/ full load) | Mast | mm | 152/132 | |
| 28 | Frame | mm | 158/138 | ||
| 29 | Battery | v/ah | 12/90 | ||
| 30 | Engine | Model | NISSAN K25 | ||
| 31 | Rated output | kw/r.p.m | 44/2500 | ||
| 32 | Rated torque | n.m/r.p.m | 186/1600 | ||
| 33 | Displacement | cc | 2472 | ||
| 34 | No. of cylinder | 4 | |||
| 35 | Bore×stroke | mm | / | ||
| 36 | Transmission | Model | Hydraulic | ||
| 37 | Shift (FWD/RVS) | 1/1 | |||
| 38 | Operating pressure | mpa | 17.5 | ||
