CBB61 450V 1.0UF Film Capacitor Run Capacitor Two Quick Connect Terminal S3
CBB61 450V 1.0UF Film Capacitor Run Capacitor Two Quick Connect Terminal S3
Air Conditioner Fan Capacitor is a compressor capacitor designed specifically for air conditioner. It has a rated frequency of 50/60Hz and a wide operating temperature range of -40℃~+85℃. It provides a tolerance of ±5% and is available in black color. It has two quick-connect terminals, making installation and maintenance easy. This capacitor is ideal for running efficiently and reliably in various environments.
Applications
It is the perfect choice for all types of AC motor applications, such as air conditioner compressors, fans, pumps, and other motor-driven equipment.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
1.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40℃~+85℃(40/85/21) | |

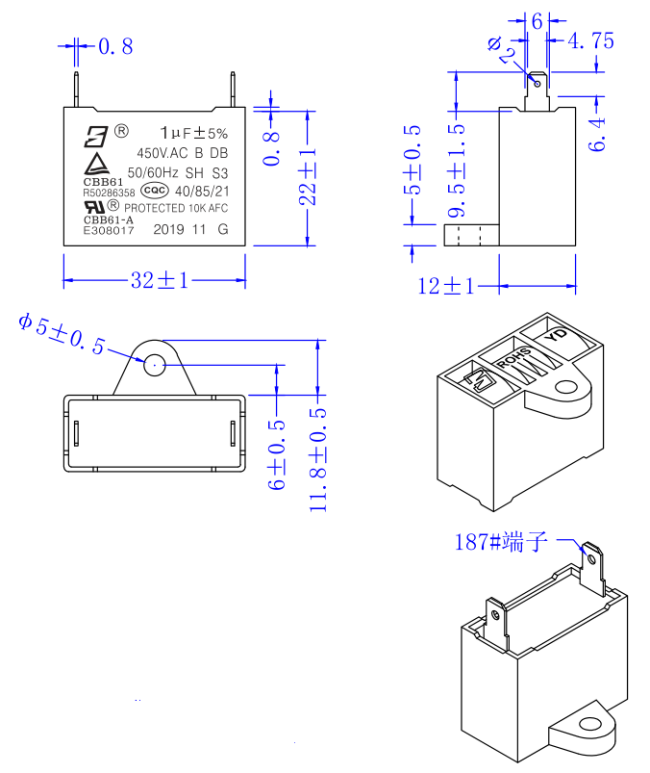

Outline Drawing(32mm=1-17/64in,12mm=15/32in,22mm=55/64in)
