Three Phase Diesel Generator 150kVA 120kW Cummins Diesel Genset With Soundproof Canopy
Price:
bargain face-to-face
MOQ:
1 pc
Delivery Time:
20-30 DAYS
Brand:
DELLENT
Product Description
Three Phase 150kVA 120kW Cummins Diesel Genset Equip With Soundproof Canopy
Ⅰ. PRODUCT
| Engine Specification | ||
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
| Engine Brand | Cummins | |
| Engine Model | 6BTAA5.9-G12 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 154 |
| Displacement | L | 5.9 |
| Compression Ratio | 17.3 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 16.4 |
| Intake Air Flow | M3/Min | 7.6 |
| Fuel Consumption at 100% Load | L/H | 34 |
| Alternator Specification | ||
| Alternator Manufacturer | Fuan Dellent Electric & Machinery Co., Ltd. | |
| Alternator Brand | DELLENT | |
| Rate Output | kVA | 150 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Phase | 3 Phase | |
| Working Temperature without power decrease | ≤40℃ | |
| Working Altitude without power decrease | ≤1000m | |
| Automatic Voltage Regulation | SX440 | |
| Protection Grade | IP23 | |
| Control Panel Specification | ||
| Controller Brand | Deepsea | |
| Controller Model | DSE6120 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 250 | |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:

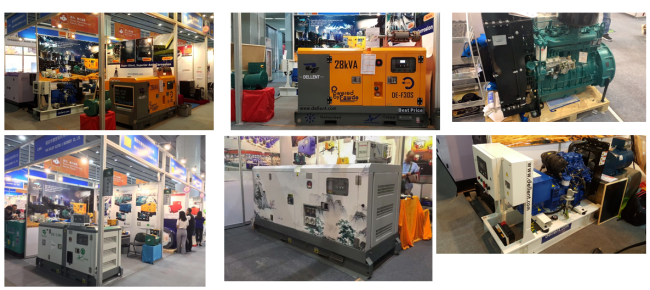

Ⅳ. FACTORY INTERIOR:
