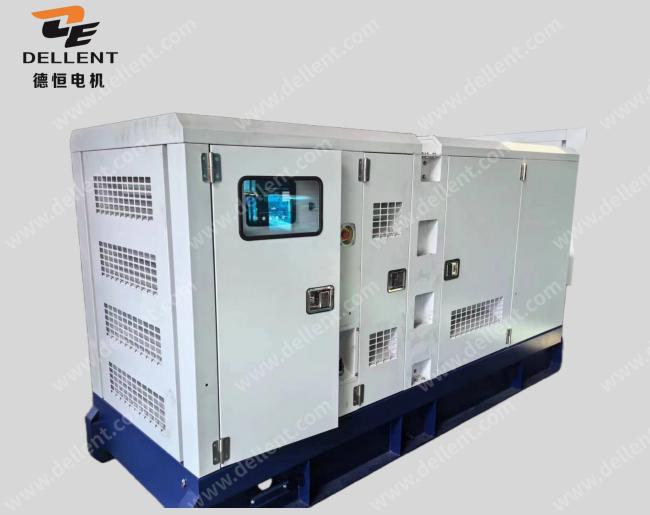

88kVA Standby Power Perkins Diesel Generator Set 1104A-44TG2
1104A-44TG2 50Hz 88kVA Standby Power Perkins Diesel Generator Set
Commercial Perkins 88kVA Generator
,1104A-44TG2 Engine Diesel Generator
,CE Perkins 88kva Generator ,50/60HZ
Ⅰ.PRODUCT DESCRIPTION
Product parameters:
Specification of Soundproof Diesel Generator:
| Model | DE-P88 | |
| Max. Power | kVA | 88 |
| kW | 70.4 | |
| Rate Power | kVA | 80 |
| kW | 64 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 115.5 |
| Fuel Tank Capacity | L | 160 |
| Dimension For Open-type Genset | mm | 1860 X 750 X 1200 |
| Weight For Open-type Genset | kg | 1052 |
| Dimension For Soundproof Genset | mm | 2500 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1500 |
| Noise Level for Soundproof Generator | dBA | 70dBA at 7 Meters |
| Battery | One of 80A Free Maintenance Battery |
|
Specification of Perkins Diesel Engine:
| Engine Manufacturer | Perkins | |
| Engine Brand | Perkins | |
| Engine Model | 1104A-44TG2 | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 82.5 |
| Displacement | L | 4.4 |
| Compression Ratio | 17.25 : 1 | |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 127 |
| Lubrication Oil Capacity | L | 7 |
| Intake Air Flow | M3/Min | 5.28 |
| Fuel Consumption at 100% Load | L/H | 18.7 |
Specification of Control Panel for Soundproof Diesel Generator:
| Controller Brand | Deepsea | |
| Controller Model | DSE | |
| Breaker Brand | Delixi6120 | |
| Breaker Capacity (A) | 125 | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
Advantages:
Compact Design: Our generator with Perkins engine is designed to be compact and easy to transport, making it ideal for use in a variety of locations. Its small size also makes it easy to store when not in use, freeing up valuable space in your workshop or storage area.
Quiet Operation: With its advanced noise reduction technology, our generator with Perkins engine operates at low noise levels, making it ideal for use in noise-sensitive environments. This makes it a great choice for residential and commercial use, where noise pollution is a concern.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
