SDEC Engine Brushless Alternator 350kVA Automatic Diesel Generator
Price:
face to face
MOQ:
1*20GP
Delivery Time:
30 DAYS FROM DEPOSIT RECEIVED
Brand:
DELLENT
Product Description

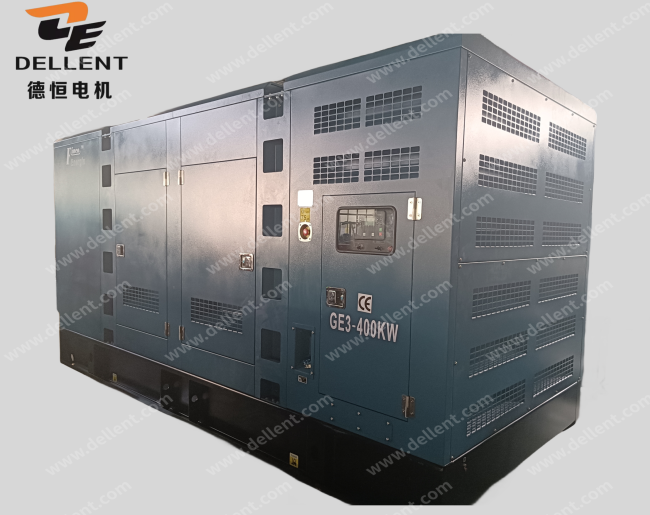

Brushless Alternator 350kVA Automatic Diesel Generator
Ⅰ. PRODUCT DESCRIPTION
350kva Standby Power SDEC Genset Soundproof Engine By 6 Cylinder In Line
Dellent Power supply the standby power 220kVA water cooled diesel generator with SDEC brand diesel engine model6ETAA11.8-G21. The water cooled diesel generator with rated output 350kVA /280kW, standby power385kVA / 308kW.
110kVA Diesel Generator Powered by SDEC Diesel Engine:
| Model | DE-SC385 | |
| Max. Power | kVA | 385.0 |
| kW | 308.0 | |
| Rate Power | kVA | 350.0 |
| kW | 280.0 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 380/220V |
| Rate Current | A | 531 |
SDEC Diesel Engine:
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. | |
| Engine Brand | SDEC | |
| Engine Model | 6ETAA11.8-G21 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 338 |
| Displacement | L | 11.800 |
| Starting Voltage | V | 24 |
| Bore | mm | 128 |
| Stroke | mm | 153 |
| Lubrication Oil Capacity | L | 33-41 |
| Compression Ratio | 17 : 1 | |
| Fuel Tank Capacity | L | 450 |
| Fuel Consumption at 100% Load | L/H | 72.5 |
Specification of Control Panel:
| Controller Brand | Deepsea | |
| Controller Model | DSE6120 | |
| Breaker Brand | Delixi | |
| Breaker Capacity | A | 630 |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
