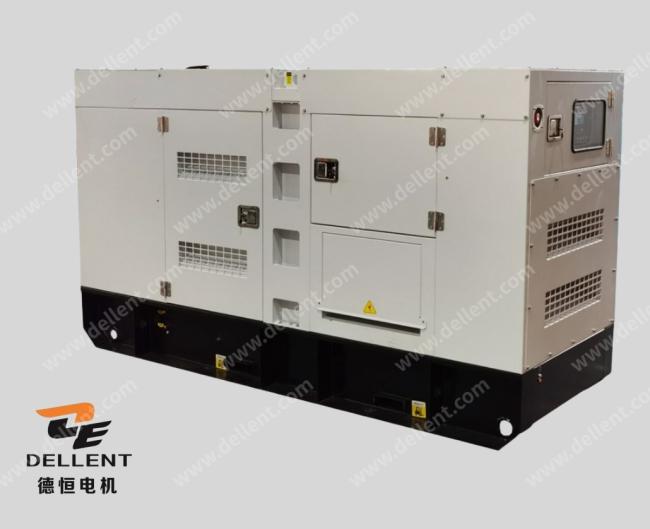

Standby Power 110 Kva Cummins Diesel Generator 50Hz With Deepsea Controller
Price:
bargain face-to-face
MOQ:
1 pc
Delivery Time:
20-30 DAYS
Brand:
DELLENT
Product Description
50 Hz Cummins Diesel Generator With Deepsea Controller 110kVA Standby Power
Ⅰ. PRODUCT
| Generator Set Specification | ||
| Model | DE-C110 | |
| Max. Power | kVA | 110 |
| kW | 88 | |
| Rate Power | kVA | 100 |
| kW | 80 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 144.3 |
| Alternator Specification | ||
| Alternator Manufacturer | Fuan Dellent Electric & Machinery Co., Ltd. | |
| Alternator Brand | DELLENT | |
| Rate Output | kVA | 105 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Phase | 3 Phase | |
| Working Temperature without power decrease | ≤40℃ | |
| Working Altitude without power decrease | ≤1000m | |
| Automatic Voltage Regulation | SX440 | |
| Protection Grade | IP23 | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Dellent Brushless alternator for optional | |
| Engine Specification | ||
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
| Engine Brand | Cummins | |
| Engine Model | 6BT5.9-G2 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 94.6 |
| Displacement | L | 5.9 |
| Compression Ratio | 17.3 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 16.4 |
| Intake Air Flow | M3/Min | 5.8 |
| Fuel Consumption at 100% Load | L/H | 22.3 |
| Control Panel Specification | ||
| Controller Brand | Deepsea | |
| Controller Model | DSE6120 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 160 | |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:

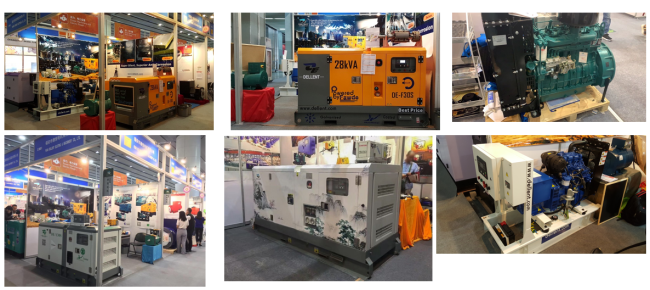

Ⅳ. FACTORY INTERIOR:
