6HTAA6.5-G22 SDEC Diesel Generator 150kVA Open Type Genset
Price:
face to face
MOQ:
1*20GP
Delivery Time:
30 DAYS FROM DEPOSIT RECEIVED
Brand:
DELLENT
Product Description

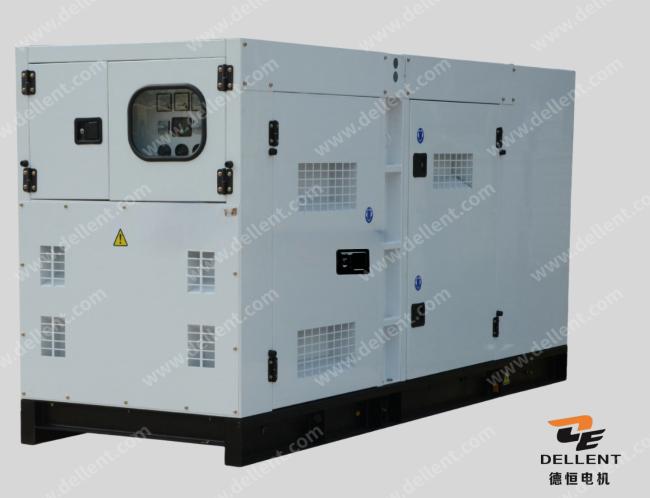

6HTAA6.5-G22 SDEC Diesel Engine 150kVA Open Type Genset
Ⅰ. PRODUCT DESCRIPTION
150kVA Standby Power SDEC Genset Soundproof Engine By 6 Cylinder In Line.Dellent Power supply the standby power 150kVA water cooled diesel generator with SDEC brand diesel engine model6HTAA6.5-G22. The water cooled diesel generator with rated output 165kVA /132kW, standby power150kVA /120kW.
1. Diesel generators are strong-built, ideal for emergency back-up,job sites and industrial appplications.
2. Powered by reliable air/water cooled diesel generators sets, industrial grade, great fuel efficiency, less maintenance, long operating life.
3. Strong technology and high-quality personnel, continuous innovation and perfect management.
150kVA Diesel Generator Powered by SDEC Diesel Engine:
|
|||||||||||||||||||||||
Specification of the Diesel Engine:
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. | |
| Engine Brand | SDEC | |
| Engine Model | 6HTAA6.5-G22 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 155 |
| Displacement | L | 6.500 |
| Starting Voltage | V | 24 |
| Bore | mm | 105 |
| Stroke | mm | 124 |
| Lubrication Oil Capacity | L | 15-17.5 |
| Compression Ratio | 16 : 1 | |
| Intake Air Flow | M3/Min | N.A |
| Fuel Consumption at 100% Load | L | 33.1 |
Specification of Automatic Control Panel:
| Controller Brand | Deepsea | |
| Controller Model | DSE6120 | |
| Breaker Brand | Delixi | |
| Breaker Capacity | A | 250 |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| Mains Monitor | Supply with DELLENT Function | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
