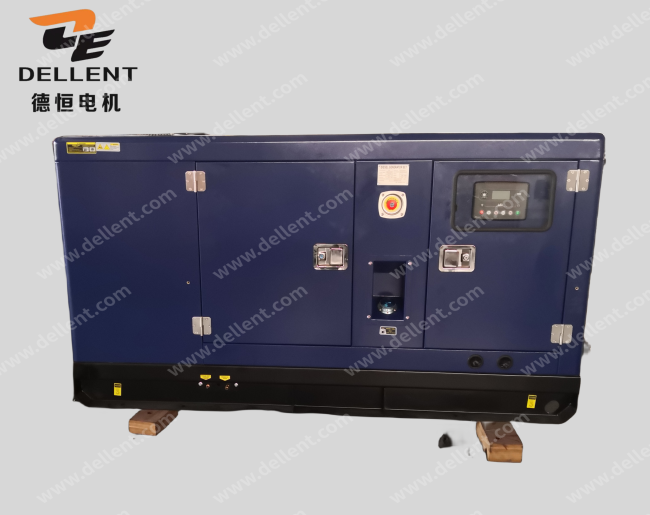

48kW 60kVA Deutz Engine Generator BF4M2012 Engine Generator Set
Commercial Deutz 60kVA Generator
,BF4M2012 Engine Diesel Generator
,CE Deutz 60kva Generator
Ⅰ.PRODUCT DESCRIPTION
Deutz engine diesel generator we have all series from rated 20kva to 750kva.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.
Product parameters:
Specification of 60kVA Deutz Diesel Generator Set
| Model | DE-DD66 | |
| Max. Power | kVA | 66 |
| kW | 52.8 | |
| Rate Power | kVA | 60 |
| kW | 48 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 86.6 |
Specification of Deutz Alternator:
| Engine Manufacturer | Deutz (Dalian) Engine Co., Ltd. | |
| Engine Brand | Deutz | |
| Engine Model | BF4M2012 | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Turbocharged & Aftercooled | |
| Governor | Mech | |
| Engine Max. Output Power | kW | 58 |
| Displacement | L | 4.0 |
| Compression Ratio | 19 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 101 |
| Stroke | mm | 126 |
| Lubrication Oil Capacity | L | 8.5 |
| Fuel Tank Capacity | L | 125 |
| Fuel Consumption at 100% Load | L/H | 13.7 |
Specification of Control Panel:
| Controller Brand | Smartgen | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 125 | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
FAQ
Q: What's your delivery time?
A: Standard product 20 days - 35 days. Customized product 40 days.
Q: Can we add our logo to products?
A: Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q: Can we customize the product?
A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system
