Isuzu 20kw Generator 50Hz 25 Kva 3 Phase Generator With JE493DB-04 Engine
Price:
face to face
MOQ:
1*20GP
Delivery Time:
20-30 DAYS
Brand:
DELLENT-ISUZU
Product Description

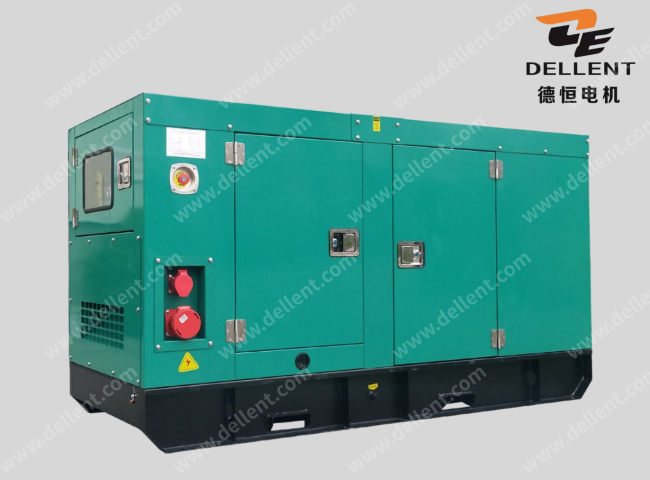

25kVA 20kW 50Hz Isuzu Diesel Generator With JE493DB-04 Engine
Light:
Commercial ISUZU 25kVA Generator
,JE493DB-04Engine Diesel Generator
,CE ISUZU 25kVA Generator ,50HZ
Ⅰ. PRODUCT DESCRIPTION
Product Introduce:
Our Isuzu engine diesel generator have all series from 20kva to 106kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Advantage of our Isuzu diesel generator :
- Complete Isuzu diesel generator which canopy adopts rainproof and corrosion-resistant electrostatic powder coating. After high-temperature baking, it is leveled and solidified to form a dense protective coating, which is both corrosion-resistant and wear-resistant.
- Silent canopy with 3cm laminated flame-retardant sound-absorbing cotton, rubber sealing strips on door tracks, built-in silencer, all-around protection and mute measures, which effectively reduce noise pollution.
- Isuzu diesel generator with Integral full-bending chassis fuel tank, and bowl-type compound shock-absorber reduces the vibration of the unit, and reduces the damage to the parts.
Product parameters:
Specification:
| Model | DE-IS28 | |
| Max. Power | kVA | 28 |
| kW | 22.4 | |
| Rate Power | kVA | 25 |
| kW | 20 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 36.1 |
| Fuel Tank Capacity | L | 60 |
Technical Data of ISUZU Diesel Engine:
| Engine Manufacturer | Jiangxi Isuzu Motors Co., Ltd. | |
| Engine Brand | ISUZU | |
| Engine Model | JE493DB-04 | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 27 |
| Displacement | L | 2.8 |
| Compression Ratio | 18.2 : 1 | |
| Starting Voltage | V | 12 |
| Bore | mm | 93 |
| Stroke | mm | 102 |
| Lubrication Oil Capacity | L | 5.6 |
| Intake Air Flow | M3/Min | 18.2 |
| Fuel Consumption at 100% Load | L/H | 7.189156627 |
| Control Panel Specification: | ||
| Controller Brand | Smartgen | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 63 | |
| Battery Charger | Smartgen | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
If you need ISUZU generator with other models technical data, kindly contact us for catalogues!
