China QC4102D 30 Kva Silent Diesel Generator Set with Smartgen Controller for sale

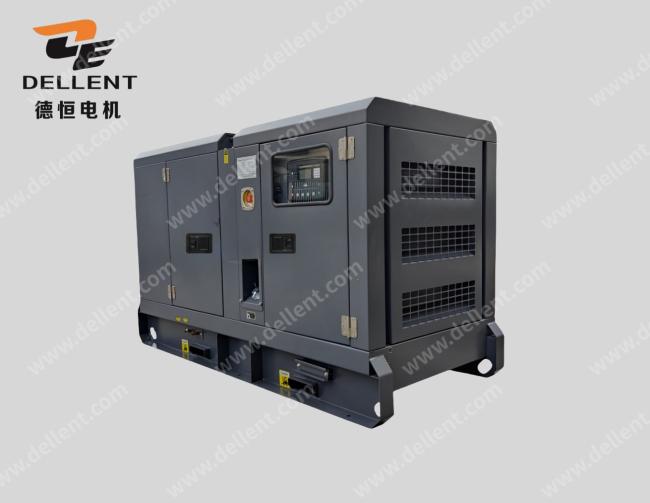

QC4102D 30 Kva Silent Diesel Generator Set with Smartgen Controller

Price Negotiable
Price: face to face
MOQ: 1PC
Delivery Time: 20-30 DAYS
Brand: DELLENT-QUAN CHAI
Product Description
 Light:

Commercial QUAN CHAI 30kVA Generator

,QC4102D

 Engine Diesel  Generator

,

CE QUAN CHAI 30kVA Generator ,50HZ

Ⅰ. PRODUCT DESCRIPTION

Quanchai Diesel 30kva Silent Genset Smartgen
Product Introduce:
Our Quan Chai engine diesel generator have all series from 10kva to 40kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.

1. Diesel generator parts are international renowned brands, top quality, easy maintaining and replace.

2. The diesel generator has the function of generating electricity and can be used as a backup power supply for various places.

3. Standard control panel is the basic configure for normally operation and usage.

Product parameters:

Specification:

Model DE-Q32
Max. Power kVA 33
kW 26
Rate Power kVA 30
kW 24
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 43.3

Technical Data of Quan Chai Diesel Engine:



Engine Specification
Engine Manufacturer Anhui Quanchai Engine Co., Ltd.
Engine Brand Quanchai
Engine Model QC4102D
No. of Cylinder 4 Cylinder in line
Aspiration Naturally Aspirated
Governor Mechanical
Engine Max. Output Power kW 33
Displacement L 3.857
Starting Voltage V 12
Bore mm 102
Stroke mm 118
Lubrication Oil Capacity L 7
Compression Ratio 18 : 1
Intake Air Flow M3/Min 2.5
Fuel Consumption at 100% Load L 9.6

Technical data--Controller

Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity (A) 63
Battery Charger Smartgen
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with DELLENT Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

Ⅲ. QUALIFICATION CENTIFICATE:

Ⅳ. FACTORY INTERIOR:



If you need Quan Chai generator with other models technical data, kindly contact us for catalogues!
